09 Tracks & Magnetic > Magnetic Spots
42122A/B/W

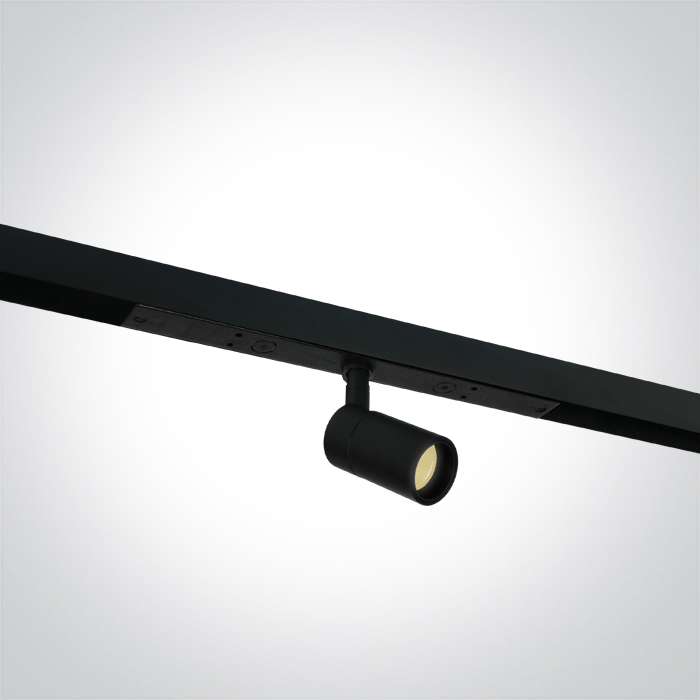

3W spot for magnetic track, ideal for shops and showrooms.
Suitable for MINI magnetic tracks.
Complies with standard EN60598-1 and any other specific standards.
Suitable for MINI magnetic tracks.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
09 Tracks & Magnetic
Family
Magnetic Spots
Order Code
42122A/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
52mm
Diameter
28mm
Surface Wall
Yes
Track mounted
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
3W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3535
LED Brand
Bridgelux
Illumination Data
Colour Temperature
3000K
Lumen Output
240lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
38º
Illumination Diagram
Packing Info
Box Weight
0.163kg
Pcs/Carton
30
Barcode
5291889079491
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
36000Hrs L70B50
Wee Directive
Yes
Year in which the CE mark was affixed
24
