ONE Light

    • 10 Tracks & Magnetic > Magnetic Linear Lights

    42120B/B/W
    Gallery
    42120B/B/W
    Related items
    42001/B
    42001R/B
    42001TR/B
    42002/B
    42002R/B
    42002TR/B
    42003/B
    42120B/B/W

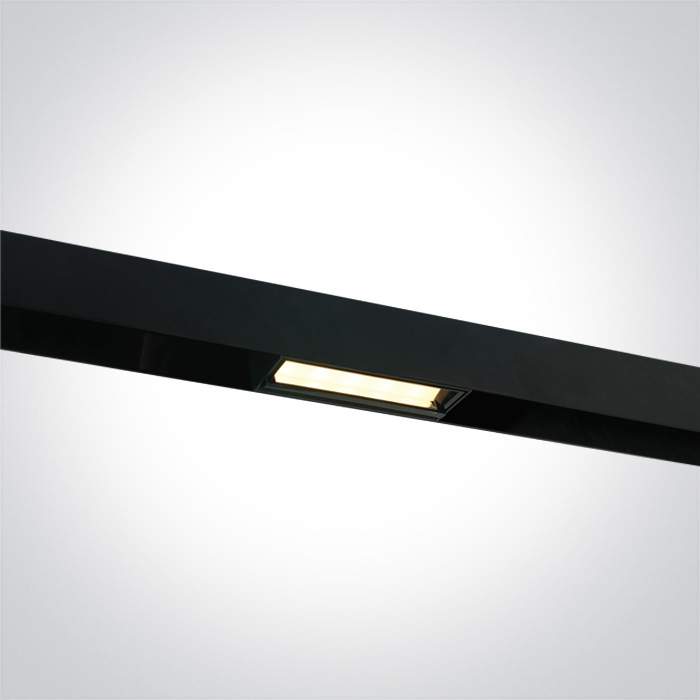

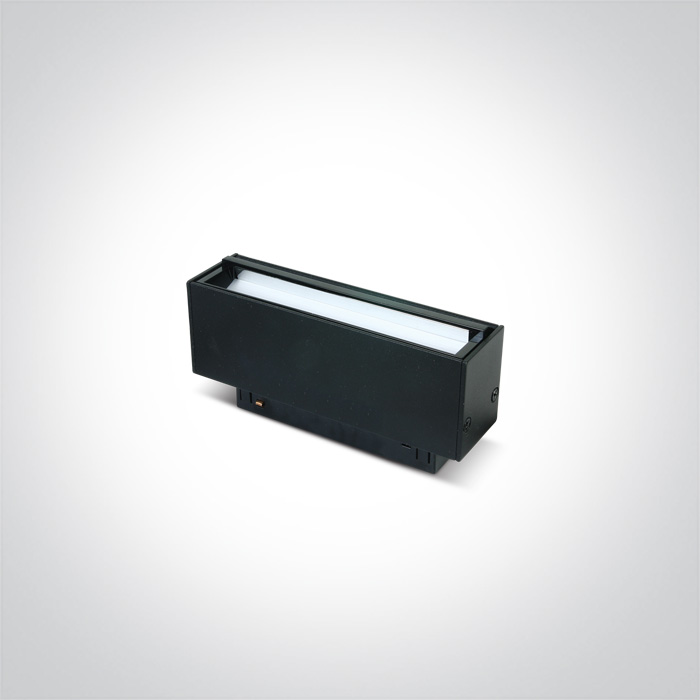

    Assymetric LED Linear magnetic track light, ideal for shops and showrooms.

    Suitable for MAXI magnetic tracks.

    Complies with standard EN60598-1 and any other specific standards.
    Indoor
    Ceiling
    Wall
    IP
    CRI
    Beam Angle
    CE
    Dimensions
    Downloads
    Product PDF IES Photo Download

    Physical Specification

    +
    Item Group
    10 Tracks & Magnetic
    Family
    Magnetic Linear Lights
    Order Code
    42120B/B/W
    Colour
    Black
    Material
    Aluminium
    Diffuser Material
    PC
    Shape
    Rectangular
    Length
    140mm
    Width
    37mm
    Height
    50mm
    Surface Wall
    Yes
    Track mounted
    Yes
    Indoor
    Yes
    Adjustable
    No

    Electrical Characteristics

    +
    Gear
    Order Separately
    Fitting
    Input Type
    Constant Voltage
    Input Voltage
    48V DC
    Safety Class
    Power (Watts)
    12W
    IP Rating
    IP20
    Light Source
    LED built in
    LED Type
    SMD 3535
    LED Brand
    Bridgelux

    Illumination Data

    +
    Colour Temperature
    3000K
    Lumen Output
    960lm
    Light Efficiency
    80lm/W
    CRI
    90
    Beam Angle
    90º
    Illumination Diagram

    Packing Info

    +
    Box Weight
    0.292kg
    Pcs/Carton
    40
    Barcode
    5291889072331
    HS Code
    9405413990

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    3 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    22
