New 2025 Edition 3 > Plug & Play
42112PB/B/V
24W CCT Variable LED Plug & Play 48V DC linear spots.
Max 15m/driver. Max 250W/circuit.
Complies with standard EN60598-1 and any other specific standards.
Max 15m/driver. Max 250W/circuit.
Complies with standard EN60598-1 and any other specific standards.

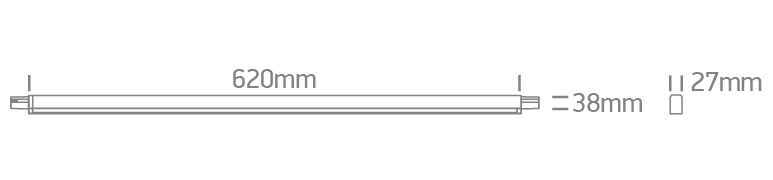

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Plug & Play
Order Code
42112PB/B/V
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
620mm
Width
27mm
Height
38mm
Surface Ceiling
Yes
Surface Wall
Yes
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
24W
IP Rating
IP20
Light Source
LED built in
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
1920lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
50°
Illumination Diagram
Packing Info
Box Weight
1.025kg
Pcs/Carton
20
Barcode
5291889084709
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
