New 2025 Edition 3 > Magnetic Lights

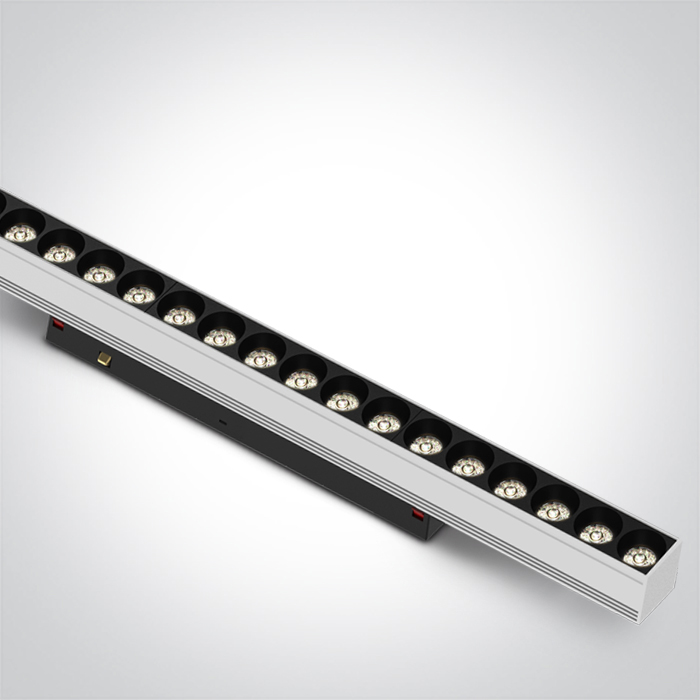

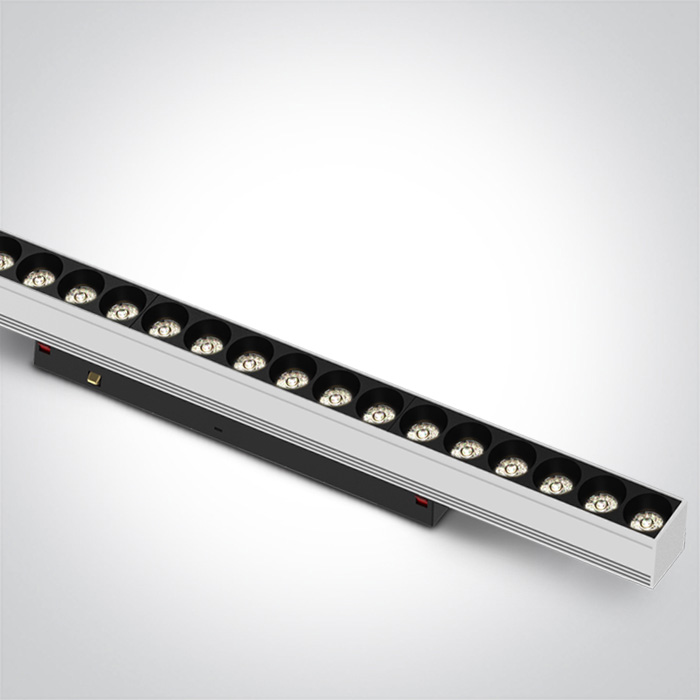

42112BAL/W/V
18W DALI DT8 CCT Tunable LED Linear light for magnetic profile.
Suitable for MINI and MIDI magnetic profiles.
Complies with standard EN60598-1 and any other specific standards.
Suitable for MINI and MIDI magnetic profiles.
Complies with standard EN60598-1 and any other specific standards.

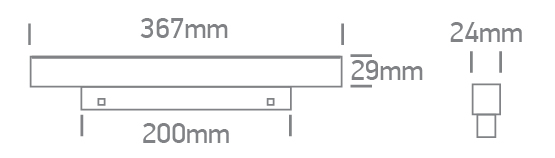

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Magnetic Lights
Order Code
42112BAL/W/V
Colour
White
Material
Aluminium
Shape
Rectangular
Length
367mm
Width
24mm
Height
29mm
Surface Ceiling
Yes
Surface Wall
Yes
Track mounted
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
18W
IP Rating
IP20
Light Source
LED built in
F Mark
Illumination Data
Colour Code
3000K-4000K DT8 Tunable
Lumen Output
1440lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
50°
Illumination Diagram
Packing Info
Box Weight
0.345kg
Pcs/Carton
40
Barcode
5291889086949
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
