New 2025 Edition 3 > Magnetic Lights

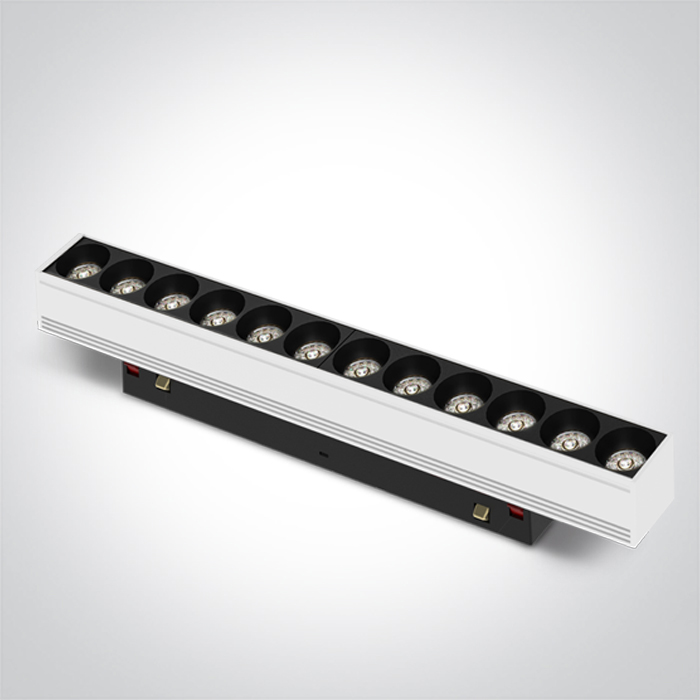

42112AA/W/V
12W CCT Variable White Linear spots magnetic profile light.
Suitable for MINI and MIDI magnetic profiles.
Complies with standard EN60598-1 and any other specific standards.
Suitable for MINI and MIDI magnetic profiles.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Magnetic Lights
Order Code
42112AA/W/V
Colour
White
Material
Aluminium
Shape
Rectangular
Length
246mm
Width
24mm
Height
29mm
Surface Wall
Yes
Track mounted
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
F Mark
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
960lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
50°
Illumination Diagram
Packing Info
Box Weight
0.258kg
Pcs/Carton
50
Barcode
5291889086543
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
