New 2025 Edition 3 > Magnetic Lights

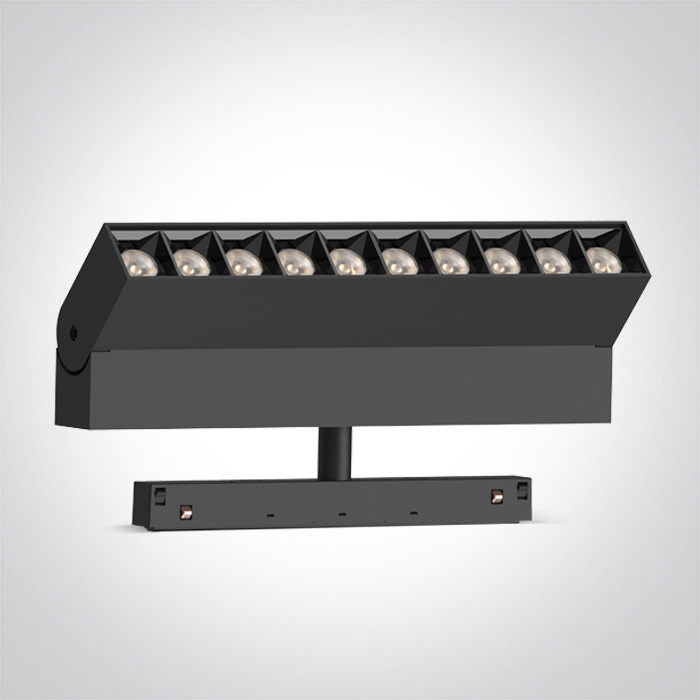

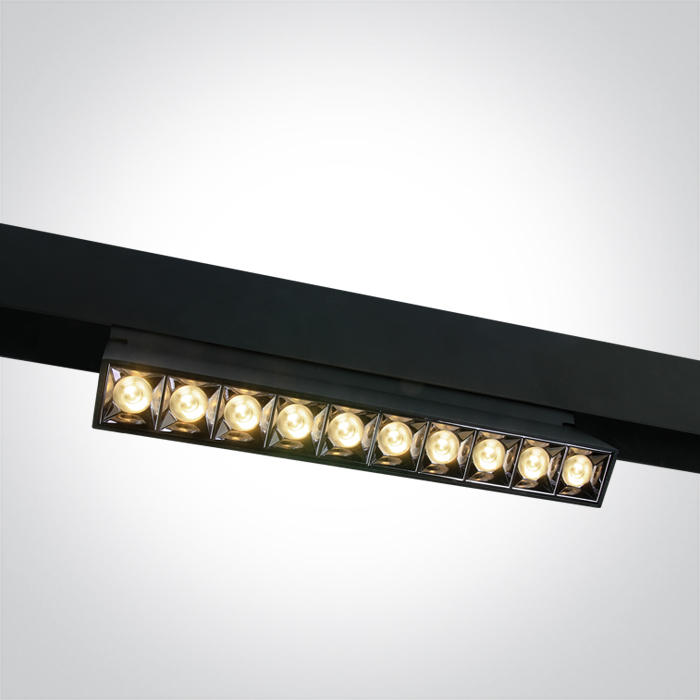

42106BL/B/V
22W DALI DT8 CCT Tunable LED Linear spots for magnetic profile.
Adjustable 1 direction MAXI, Adjustable 2 direction MINI.
Suitable for MINI, MAXI & P&P magnetic profiles.
Complies with standard EN60598-1 and any other specific standards.
Adjustable 1 direction MAXI, Adjustable 2 direction MINI.
Suitable for MINI, MAXI & P&P magnetic profiles.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Magnetic Lights
Order Code
42106BL/B/V
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
270mm
Width
34mm
Height
95mm
Surface Ceiling
Yes
Track mounted
Yes
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
22W
IP Rating
IP20
Light Source
LED built in
F Mark
Illumination Data
Colour Code
3000K-4000K DT8 Tunable
Lumen Output
1760lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Weight
0.813kg
Pcs/Carton
20
Barcode
5291889086413
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
