ONE Light

    • New 2025 Edition 3 > Magnetic Lights

    42102BL/B/V
    Gallery
    42102BL/B/V
    42102BL/B/V

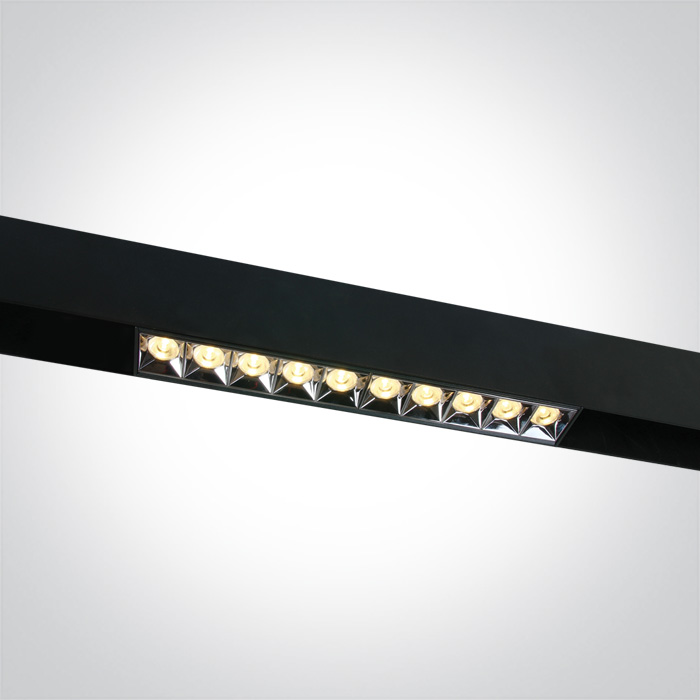

    22W DALI DT8 CCT Tunable LED Linear light for magnetic profile.

    Suitable for MAXI magnetic profiles.

    Complies with standard EN60598-1 and any other specific standards.
    Indoor
    Ceiling
    Wall
    IP
    CRI
    Dimmable
    Beam Angle
    CE

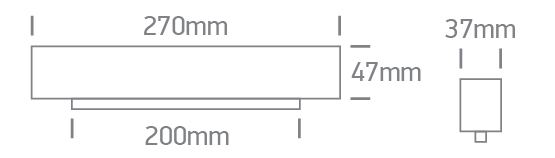

    Dimensions
    Downloads
    Product PDF Photo Download

    Physical Specification

    +
    Item Group
    New 2025 Edition 3
    Family
    Magnetic Lights
    Order Code
    42102BL/B/V
    Colour
    Black
    Material
    Aluminium
    Shape
    Rectangular
    Length
    270mm
    Width
    37mm
    Height
    47mm
    Surface Ceiling
    Yes
    Surface Wall
    Yes
    Track mounted
    Yes
    Indoor
    Yes
    Adjustable
    No

    Electrical Characteristics

    +
    Gear
    Order Separately
    Fitting
    Input Type
    Constant Voltage
    Input Voltage
    48V DC
    Safety Class
    Power (Watts)
    22W
    IP Rating
    IP20
    Light Source
    LED built in
    F Mark

    Illumination Data

    +
    Colour Code
    3000K-4000K DT8 Tunable
    Lumen Output
    1760lm
    Light Efficiency
    80lm/W
    CRI
    90
    Beam Angle
    38°
    Illumination Diagram

    Packing Info

    +
    Box Weight
    0.480kg
    Pcs/Carton
    30
    Barcode
    5291889086253
    HS Code
    9405413990

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    3 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    25
