New 2025 Edition 3 > Magnetic Lights
42100BL/W/V

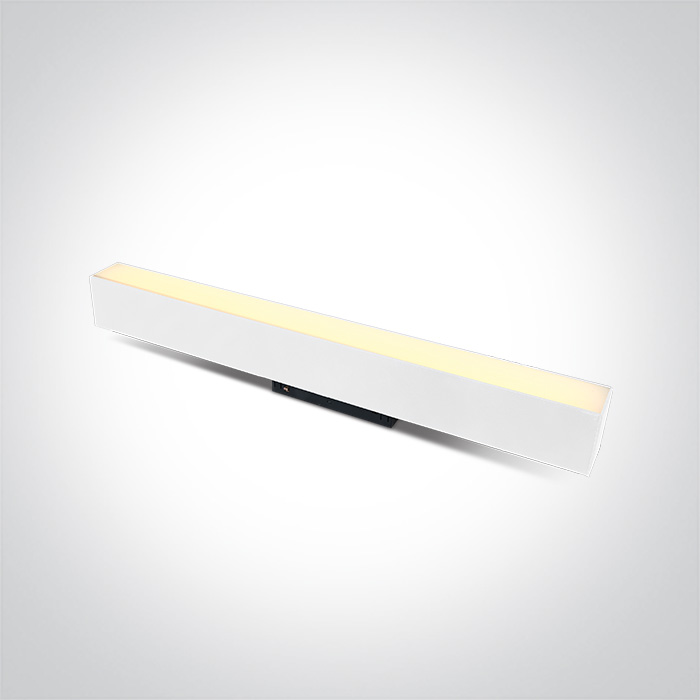

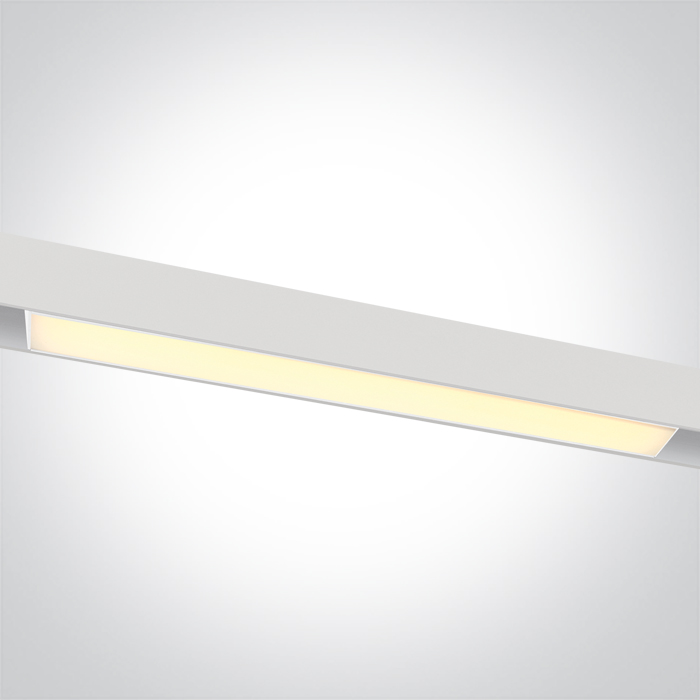

25W DALI DT8 CCT Tunable LED Linear light for magnetic profile.
Suitable for MAXI magnetic profiles.
Complies with standard EN60598-1 and any other specific standards.
Suitable for MAXI magnetic profiles.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
.jpg){kind=small}
Physical Specification
Item Group
New 2025 Edition 3
Family
Magnetic Lights
Order Code
42100BL/W/V
Colour
White
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
600mm
Width
37mm
Height
47mm
Surface Ceiling
Yes
Surface Wall
Yes
Track mounted
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Order Separately
Fitting
Input Type
Constant Voltage
Input Voltage
48V DC
Safety Class
Power (Watts)
25W
IP Rating
IP20
Light Source
LED built in
F Mark
Illumination Data
Colour Code
3000K-4000K DT8 Tunable
Lumen Output
2000lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
120º
Illumination Diagram
Packing Info
Box Weight
0.840kg
Pcs/Carton
20
Barcode
5291889086192
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
