ONE Light

    • New 2025 Edition 3 > DALI Track

    40002AL/B

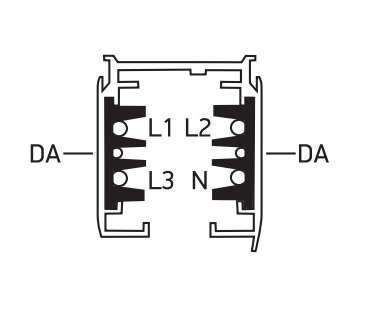

    Wiring Diagram
    /Assets/materials/files/diagrams/DALI-TRACK-WIRING-DIAGRAM.jpg
    Related items
    40001AL/B
    40003AL/B
    41004AL/B/L
    41004AL/B/R
    41008AL/B
    41010AL/B
    41012AL/B/L
    41012AL/B/R
    41016AL/B/L
    41016AL/B/R
    41018AL/B
    41026R/B
    40002AL/B
    2 meter 3-Phase 16A + DALI square track.

    Must use DALI accessories.

    Complies with standard EN60598-1 and any other specific standards.
    Indoor
    Ceiling
    Dimmable
    CE

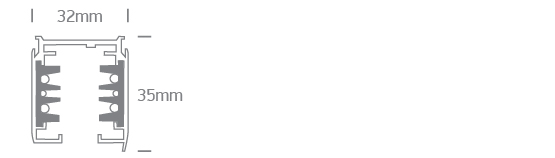

    Dimensions
    Downloads
    Product PDF Installation Manual Photo

    Physical Specification

    +
    Item Group
    New 2025 Edition 3
    Family
    DALI Track
    Order Code
    40002AL/B
    Colour
    Black
    Material
    Aluminium
    Shape
    Rectangular
    Length
    2000mm
    Width
    32mm
    Height
    35mm
    Surface Ceiling
    Yes
    Suspended Ceiling
    Yes
    Indoor
    Yes
    Adjustable
    No

    Electrical Characteristics

    +
    Gear
    No
    Fitting + Driver
    Input Voltage
    100-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Safety Class
    Dimmable
    Yes
    Dimmer type
    Dali
    F Mark

    Illumination Data

    +

    Packing Info

    +
    Box Weight
    1.730kg
    Pcs/Carton
    10
    Barcode
    5291889084440
    HS Code
    9405990090

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    5 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    25
