ONE Light

    • New 2025 Edition 3 > Industrial & Floodlights

    38250P
    Wiring Diagram
    /Assets/materials/files/diagrams/wiring-diagram-led-tubes.jpg
    38250P

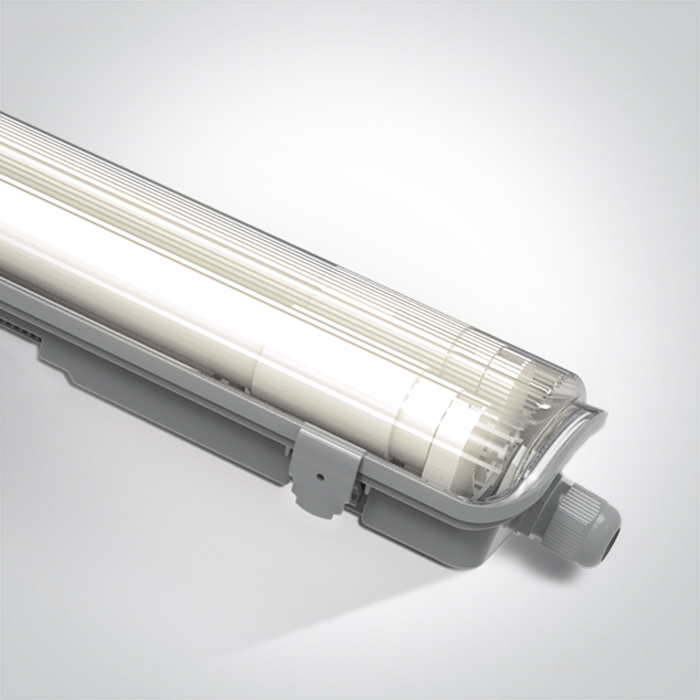

    150cm PC industrial fitting.

    Only suitable for 2xT8 LED tubes.

    Complies with standard EN60598-1 and any other specific standards.
    Indoor-Outdoor
    Ceiling
    Wall
    IP
    CRI
    Beam Angle
    CE

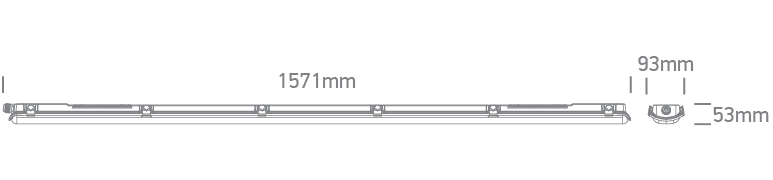

    Dimensions
    Downloads
    Product PDF Installation Manual Photo Download

    Physical Specification

    +
    Item Group
    New 2025 Edition 3
    Family
    Industrial & Floodlights
    Order Code
    38250P
    Colour
    Grey
    Material
    PC
    Diffuser Material
    PC
    Shape
    Rectangular
    Length
    1571mm
    Width
    93mm
    Height
    53mm
    Surface Ceiling
    Yes
    Surface Wall
    Yes
    Indoor
    Yes
    Outdoor
    Yes
    Adjustable
    No
    IK Rating
    8

    Electrical Characteristics

    +
    Gear
    No
    Fitting + Driver
    Input Voltage
    100-240V
    50 Hz
    Yes
    60 Hz
    Yes
    Safety Class
    IP Rating
    IP65
    Light Source
    Replaceable lamp
    Number of Lamps
    2
    F Mark

    Illumination Data

    +
    Illumination Diagram

    Packing Info

    +
    Box Weight
    1.266kg
    Pcs/Carton
    6
    Barcode
    5291889083603
    HS Code
    9405114090

    Energy Label

    +

    Certification & Warranty

    +
    Warranty
    3 years
    Wee Directive
    Yes
    Year in which the CE mark was affixed
    25
