11 Office & Kitchen > The LED Linear Range
38248M/W/W
48W LED fitting ideal for office installation, IP20.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

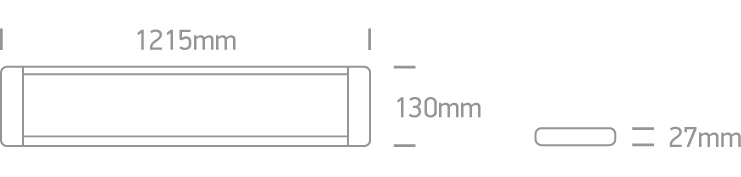

Dimensions
Downloads
Physical Specification
Item Group
11 Office & Kitchen
Family
The LED Linear Range
Order Code
38248M/W/W
Colour
White
Material
Aluminium + Plastic
Shape
Rectangular
Length
1215mm
Width
130mm
Height
27mm
Surface Ceiling
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
48W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Power (Watts)
46W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
4200lm
Light Efficiency
87,5lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
122cm
Box Width
13,5cm
Box Height
3,5cm
Box Weight
1.750kg
Pcs/Carton
8
Barcode
5291889058977
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
