11 Office & Kitchen > The LED Linear Range CCT V
38248M/W/V
CCT Variable 48W LED fitting ideal for office installation, IP20.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

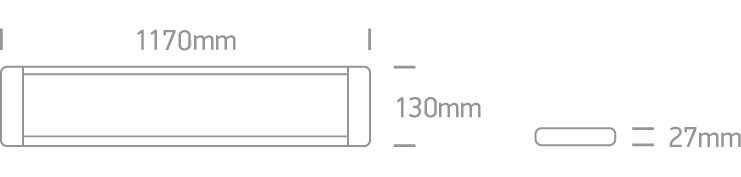

Dimensions
Downloads
Physical Specification
Item Group
11 Office & Kitchen
Family
The LED Linear Range CCT V
Order Code
38248M/W/V
Colour
White
Material
Aluminium + Plastic
Shape
Rectangular
Length
1170mm
Width
130mm
Height
27mm
Surface Ceiling
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
48W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Samsung
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Constant Current
Yes
250mA
150-170V
IP Rating
IP20
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-6500K
Lumen Output
4320lm
Light Efficiency
90lm/W
CRI
80
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
1.770kg
Pcs/Carton
6
Barcode
5291889078029
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
36000Hrs L70B50
Wee Directive
Yes
Year in which the CE mark was affixed
23
