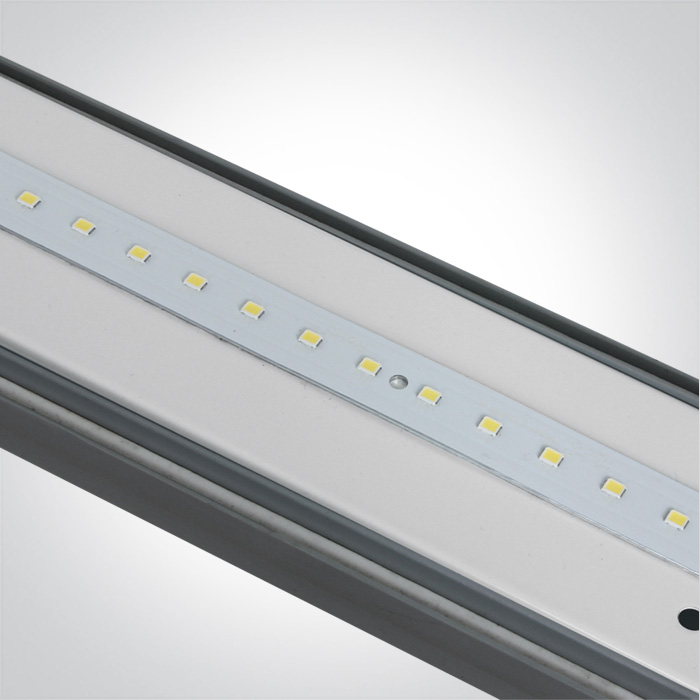

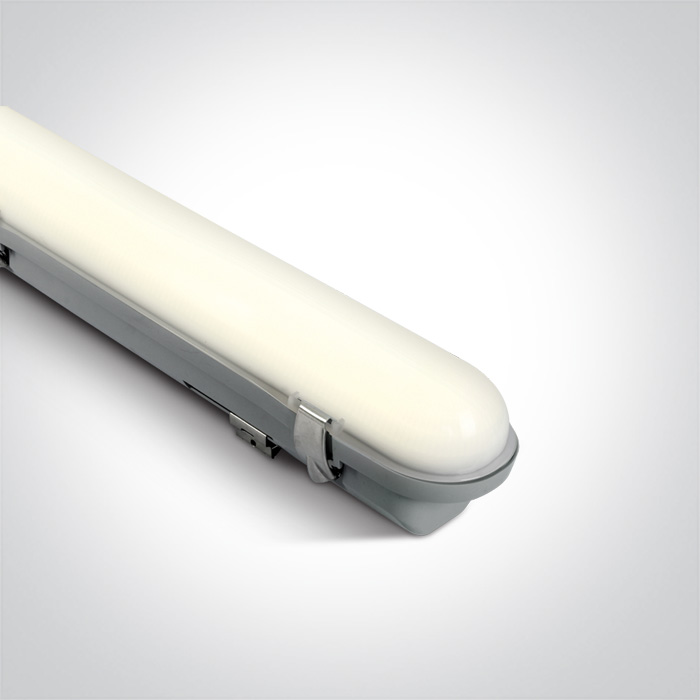

20 Industrial & Floodlights > The High Power IP65 LED Range Single
38158M/C
IP65 LED fitting to replace T8 IP65 traditional waterproof
fluorescent. Stainless steel clips included.
Polycarbonate body and diffuser.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
20 Industrial & Floodlights
Family
The High Power IP65 LED Range Single
Order Code
38158M/C
Colour
Grey
Material
PC
Diffuser Material
PC
Shape
Rectangular
Length
1515mm
Width
84mm
Height
80mm
Surface Ceiling
Yes
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
40W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
54V
Power (Watts)
37,8W
IP Rating
IP65
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Everlight
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
14-42W
Power Factor
0,9
Constant Current
Yes
700mA
20-54V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
4000K
Lumen Output
4000lm
Light Efficiency
100lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
152cm
Box Width
8,3cm
Box Height
9cm
Box Weight
1.700kg
Pcs/Carton
9
Barcode
5291889055013
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
