New 2025 Edition 2 > Office & Kitchen
38152R/W/V

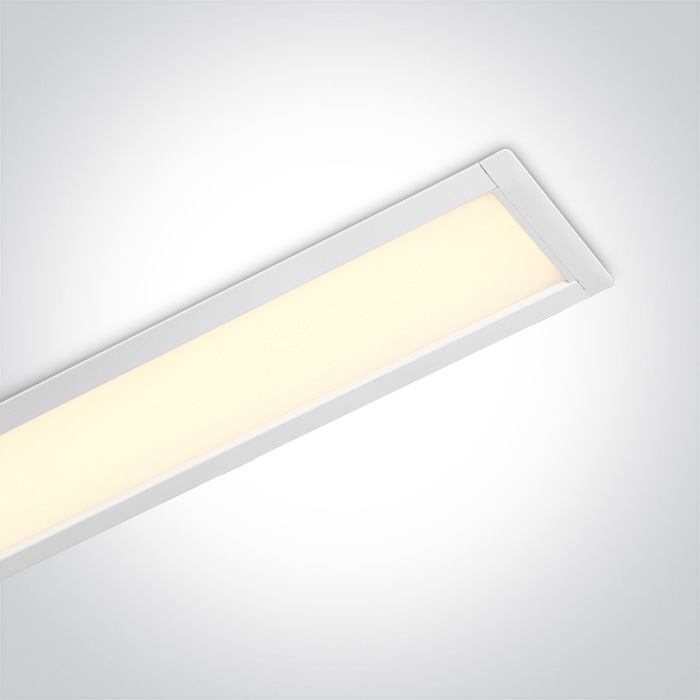

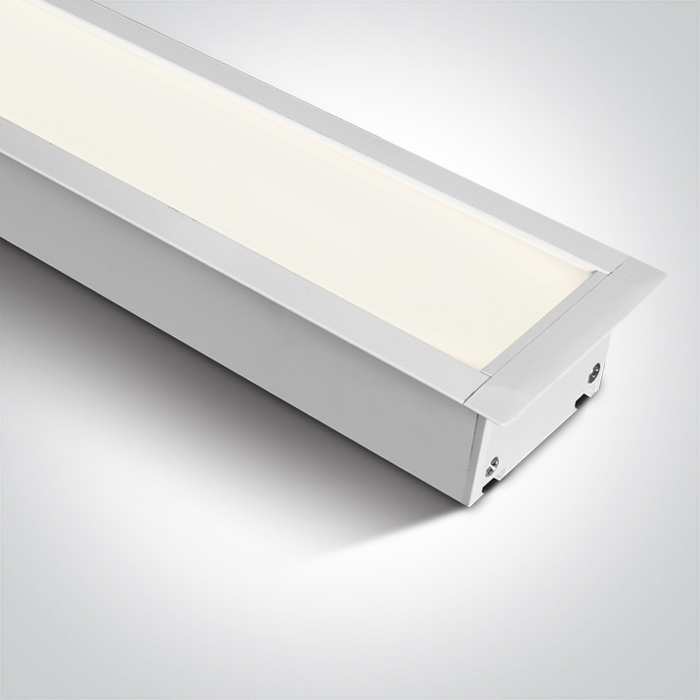

CCT and Power variable 40W recessed linear fitting with diffuser, ideal for offices.
Complete with power variable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with power variable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Office & Kitchen
Order Code
38152R/W/V
Colour
White
Material
Aluminium
Shape
Rectangular
Length
1210mm
Width
70mm
Height
60mm
Cutout Hole Width
60mm
Cutout Hole Height
1200mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W-30W-40W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
IP Rating
IP20
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
IP Rating
IP20
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
3600lm (40W)
Light Efficiency
90lm/W
CRI
90
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
2.366kg
Pcs/Carton
12
Barcode
5291889082576
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
