10 Office & Kitchen > Recessed LED Linear Profiles

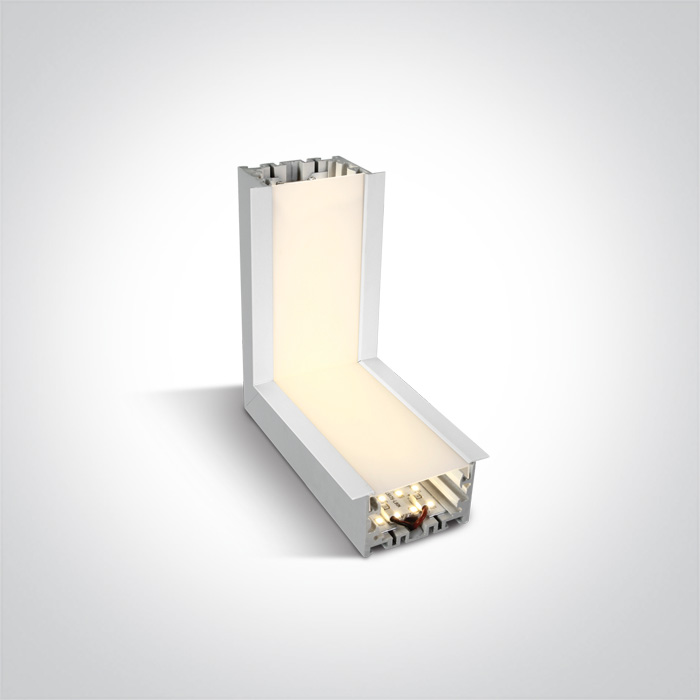

38152RL/W/W
10W ceiling to wall corner for 38152R.
Complete with 200mA driver , 4pcs fixing clips, 4pcs connectors & 2pcs end cups.
Complies with standard EN60598-1 and any other specific standards.
Complete with 200mA driver , 4pcs fixing clips, 4pcs connectors & 2pcs end cups.
Complies with standard EN60598-1 and any other specific standards.

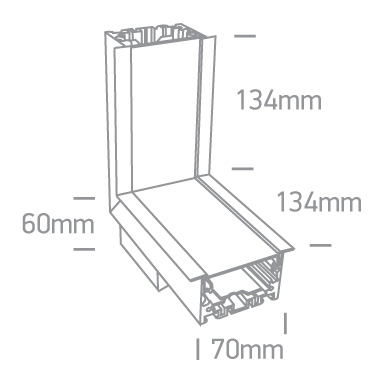

Dimensions
Downloads
Physical Specification
Item Group
10 Office & Kitchen
Family
Recessed LED Linear Profiles
Order Code
38152RL/W/W
Colour
White
Material
Aluminium
Diffuser Material
Plastic
Shape
Rectangular
Length
134x134mm
Width
70mm
Height
60mm
Cutout Hole Width
100x100mm
Cutout Hole Height
60mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
200mA
Voltage
42V
Power (Watts)
8,4W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Epistar
LED Number
72
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6-8,4W
Power Factor
0,9
Constant Current
Yes
200mA
30-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Metal
Output Terminal
Connector
Illumination Data
Colour Temperature
3000K
Lumen Output
900m
Light Efficiency
90lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
1.000kg
Pcs/Carton
6
Barcode
5291889062691
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
