20 Industrial & Floodlights > The IP66 Industrial LED Range
.jpg)

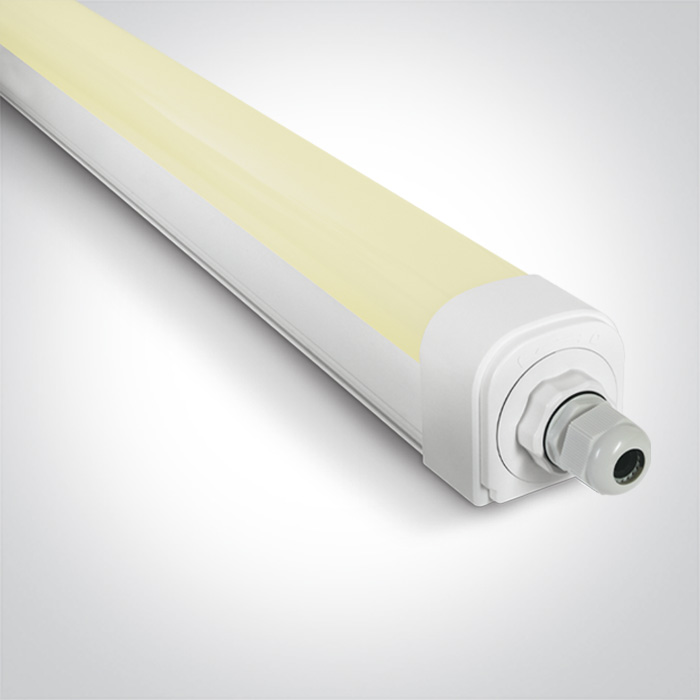

38150LB/C
50W industrial linear light, IP66.
Complete with non-dimmable LED driver.
Supplied with 3 fixing clips.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Supplied with 3 fixing clips.
Complies with standard EN60598-1 and any other specific standards.

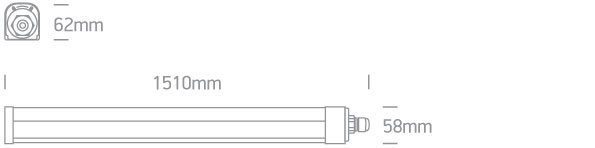

Dimensions
Downloads
Physical Specification
Item Group
20 Industrial & Floodlights
Family
The IP66 Industrial LED Range
Order Code
38150LB/C
Material
PC
Shape
Rectangular
Length
1510mm
Width
62mm
Height
58mm
Surface Ceiling
Yes
Surface Wall
Yes
Outdoor
Yes
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
50W
IP Rating
IP66
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Power (Watts)
50W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
Fast Connector
---
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
50W
Power Factor
0,9
Constant Current
Yes
300mA
116-167V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
4000K
Lumen Output
5750lm
Light Efficiency
115lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
1.144kg
Pcs/Carton
9
Barcode
5291889074427
HS Code
9405114090
Energy Label
Energy Class
Energy Consumption
50KWh/1000h
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
22
