10 Office & Kitchen > LED Linear Profiles Medium size

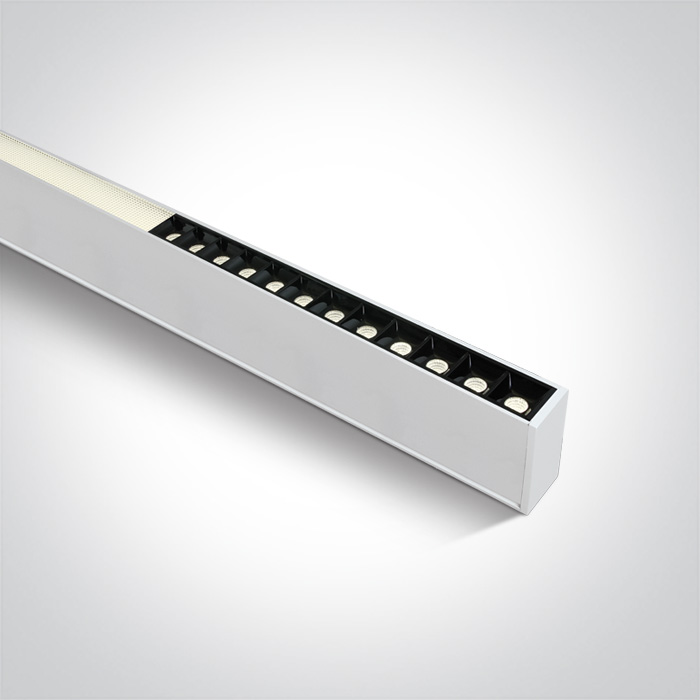

38150C/W/C
40W UGR19 Linear system with diffuser for surface or suspended installation, ideal for offices.
Complete with 1000mA driver
Complies with standard EN60598-1 and any other specific standards.
Complete with 1000mA driver
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
10 Office & Kitchen
Family
LED Linear Profiles Medium size
Order Code
38150C/W/C
Colour
White
Material
Aluminium
Shape
Rectangular
Length
1200mm
Width
70mm
Height
35mm
Surface Ceiling
Yes
Suspended Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
40W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
Cable Length
300cm
F Mark
Fitting
Input Type
Constant Current
Input Current
1000mA
Voltage
36V
Power (Watts)
36W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Osram + Epistar
LED Number
24pcs + 144pcs
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
30-42W
Power Factor
0,9
Constant Current
Yes
1000mA
30-42V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
4000K
Lumen Output
3400lm
Light Efficiency
85lm/W
CRI
90
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
1.950kg
Pcs/Carton
12
Barcode
5291889062516
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
