11 Office & Kitchen > LED Linear Floating Light
38148N/C
48W Surface fitting ideal for installation in offices, IP20.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

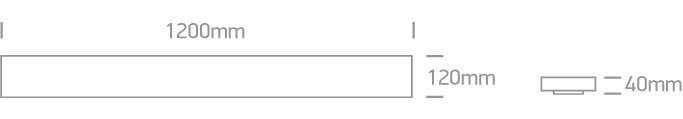

Dimensions
Downloads
Physical Specification
Item Group
11 Office & Kitchen
Family
LED Linear Floating Light
Order Code
38148N/C
Colour
White
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
1200mm
Width
120mm
Height
20mm
Surface Ceiling
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
48W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
360mA
Voltage
120V
Power (Watts)
43,2W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
10,5-15W
Power Factor
0,9
Constant Current
Yes
Voltage Range
120V
Output
360mA
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
4000K
Lumen Output
4800lm
Light Efficiency
100lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
2.150kg
Pcs/Carton
4
Barcode
5291889066323
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
