New 2025 Edition 3 > Industrial & Floodlights

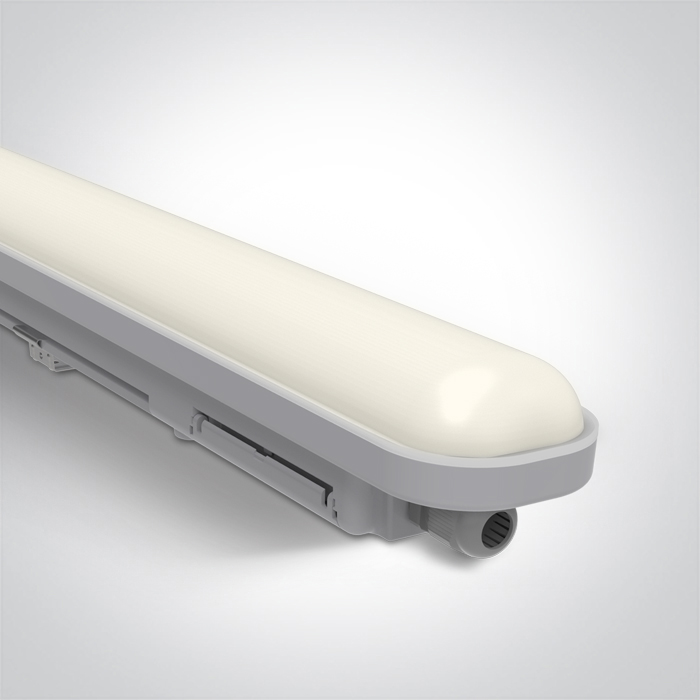

38140N/V
36W CCT and Power variable linear fitting for surface installation.
Complete with power variable driver
Complies with standard EN60598-1 and any other specific standards.
Complete with power variable driver
Complies with standard EN60598-1 and any other specific standards.

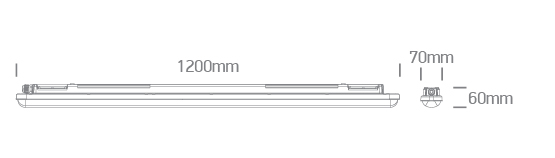

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Industrial & Floodlights
Order Code
38140N/V
Colour
Grey
Material
PC
Diffuser Material
PC
Shape
Rectangular
Length
1200mm
Width
70mm
Height
60mm
Surface Ceiling
Yes
Surface Wall
Yes
Suspended Ceiling
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W-25W-30W-36W
IP Rating
IP65
Light Source
LED built in
F Mark
Fitting
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-6500K
Lumen Output
4320lm (36W)
Light Efficiency
120lm/W
CRI
80
Beam Angle
120
Illumination Diagram
Packing Info
Box Weight
1.212kg
Pcs/Carton
16
Barcode
5291889083627
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
