38120L/W/W
20W LED fitting ideal for office installation, IP20.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

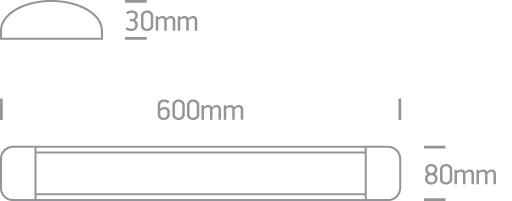

Dimensions
Downloads
Physical Specification
Item Group
11 Office & Kitchen
Family
The LED Linear Range
Order Code
38120L/W/W
Colour
White
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
600mm
Width
80mm
Height
30mm
Surface Ceiling
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Power (Watts)
19W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
1700lm
Light Efficiency
85lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
62cm
Box Width
13,5cm
Box Height
3,5cm
Box Weight
0.585kg
Pcs/Carton
12
Barcode
5291889052180
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
