17 Bathroom > Mirror Lights

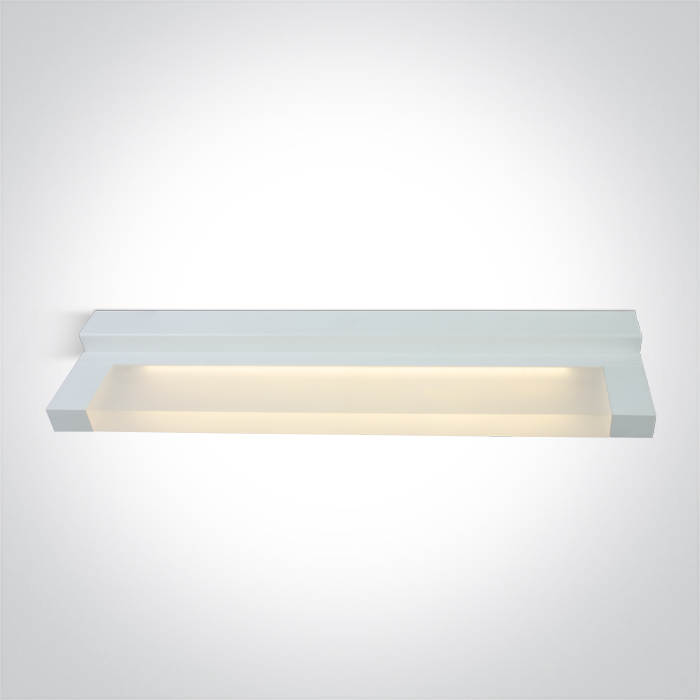

38120D/W/W
20W LED fitting ideal for installation above the bathroom
mirror, IP44.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
.jpg){kind=small}
Physical Specification
Item Group
17 Bathroom
Family
Mirror Lights
Order Code
38120D/W/W
Colour
White
Material
Aluminium
Diffuser Material
Acrylic
Shape
Rectangular
Length
430mm
Width
105mm
Height
50mm
Surface Wall
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
600mA
IP Rating
IP44
Light Source
LED built in
LED Type
SMD 2835
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
16,2-23,4W
Power Factor
0,9
Constant Current
Yes
600mA
27-39V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
1600lm
Light Efficiency
80lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
1.883kg
Pcs/Carton
6
Barcode
5291889078715
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
36000Hrs L70B50
Wee Directive
Yes
Year in which the CE mark was affixed
23
