18 Bathroom > Classic Mirror Lights

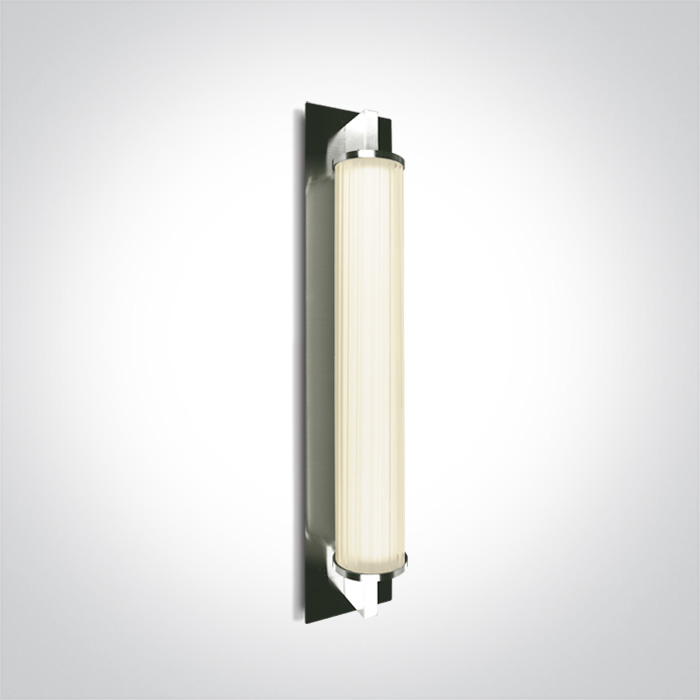

38118N/C/W
18W LED fitting ideal for installation above the bathroom
mirror, IP44.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
18 Bathroom
Family
Classic Mirror Lights
Order Code
38118N/C/W
Colour
Chrome
Material
Aluminium
Diffuser Material
Glass
Shape
Rectangular
Length
580mm
Width
105mm
Height
115mm
Surface Wall
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
18W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
25V
Power (Watts)
17,5W
IP Rating
IP44
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Sanan
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
12,6-21W
Power Factor
0,9
Constant Current
Yes
700mA
18-30V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
1225lm
Light Efficiency
68,05lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
2.816kg
Pcs/Carton
6
Barcode
5291889067634
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
