20 Industrial & Floodlights > The High Power IP65 LED Range Single

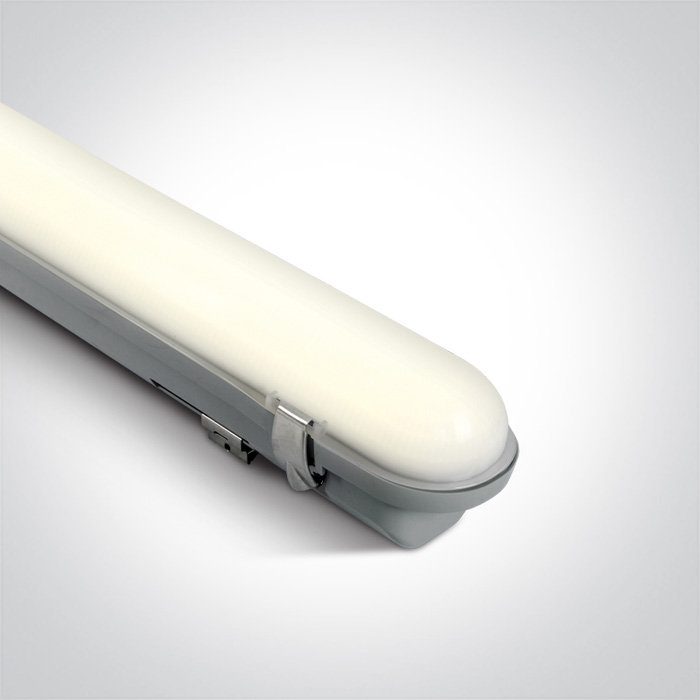

38118M/C
IP65 LED fitting to replace T8 IP65 traditional waterproof
fluorescent. Stainless steel clips included.
Polycarbonate body and diffuser.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
20 Industrial & Floodlights
Family
The High Power IP65 LED Range Single
Order Code
38118M/C
Colour
Grey
Material
PC
Diffuser Material
PC
Shape
Rectangular
Length
615mm
Width
84mm
Height
80mm
Surface Ceiling
Yes
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
Adjustable
No
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP65
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
400mA
Voltage
36V
Power (Watts)
14,4W
IP Rating
IP65
Light Source
LED built in

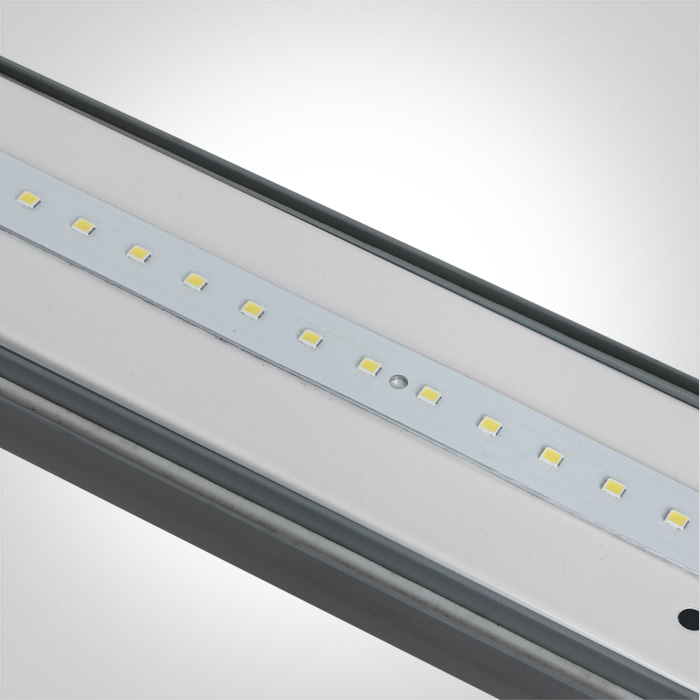

LED Type
SMD 2835
LED Brand
Everlight
LED Number
54
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
9,45-14W
Power Factor
0,9
Constant Current
Yes
350mA
27-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Output Terminal
Connector
Illumination Data
Colour Temperature
4000K
Lumen Output
1500lm
Light Efficiency
100lm/W
CRI
80
Illumination Diagram
Packing Info
Box Length
62cm
Box Width
8,3cm
Box Height
9cm
Box Weight
0.816kg
Pcs/Carton
12
Barcode
5291889054986
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
