New 2025 Edition 3 > Bathroom

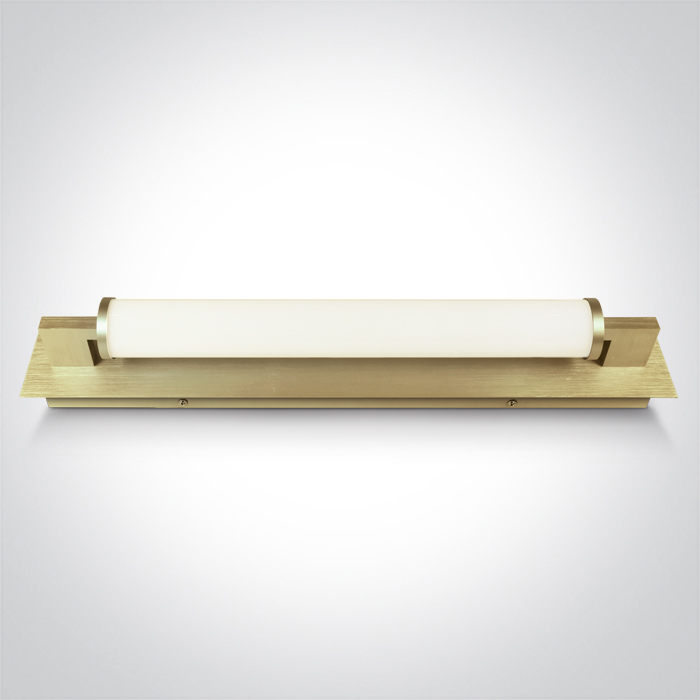

38118K/BBS/V
18W CCT Variable LED fitting ideal for installation above the bathroom
mirror, IP44.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

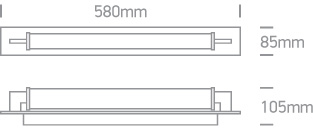

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Bathroom
Order Code
38118K/BBS/V
Colour
Brushed Brass
Material
Aluminium
Diffuser Material
Glass
Shape
Rectangular
Length
580mm
Width
85mm
Height
105mm
Surface Wall
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
18W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
450mA
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power Factor
0,9
Output
450mA
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
1440lm
Light Efficiency
80lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
2.210kg
Pcs/Carton
6
Barcode
5291889083696
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
