17 Bathroom > The Mirror LED Range
38116P/W
16W LED fitting ideal for installation above the bathroom
mirror, IP44.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

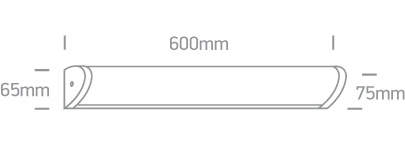

Dimensions
Downloads
Physical Specification
Item Group
17 Bathroom
Family
The Mirror LED Range
Order Code
38116P/W
Colour
Chrome
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
600mm
Width
75mm
Height
65mm
Surface Wall
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
16W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
120mA
Voltage
120V
Power (Watts)
14,4W
IP Rating
IP44
Light Source
LED built in
LED Type
SMD 2835
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
12-14,4W
Power Factor
0,9
Constant Current
Yes
Voltage Range
100-120V
Output
120mA
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
1280lm
Light Efficiency
80lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.741kg
Pcs/Carton
12
Barcode
5291889066309
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
