38115LB/V

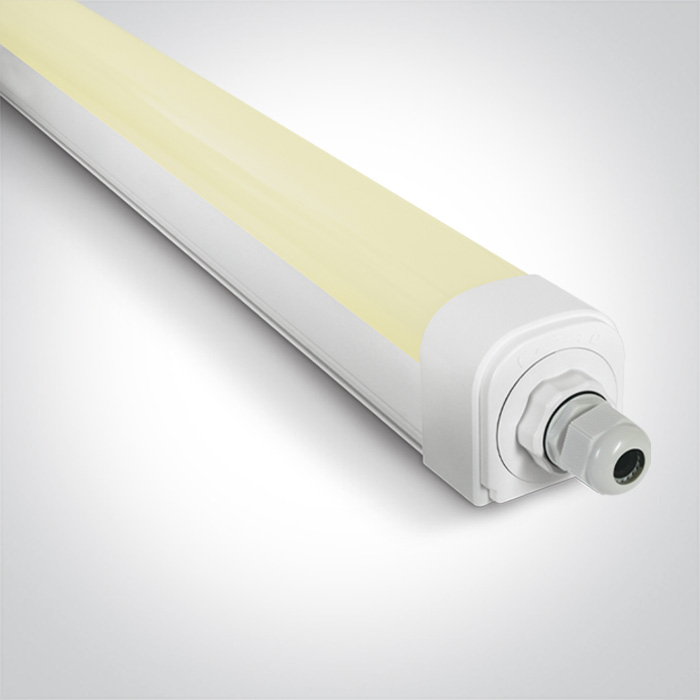

CCT Variable 15W industrial linear light, IP66.
Complete with non-dimmable driver and 2 fixing clips.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver and 2 fixing clips.
Complies with standard EN60598-1 and any other specific standards.

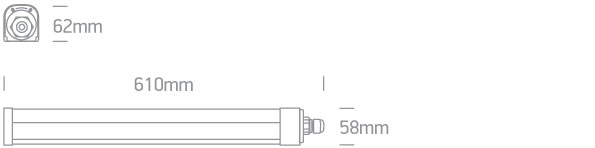

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Industrial & Floodlights
Order Code
38115LB/V
Material
PC
Shape
Rectangular
Length
610mm
Width
62mm
Height
58mm
Surface Ceiling
Yes
Surface Wall
Yes
Indoor
Yes
Outdoor
Yes
IK Rating
8
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP66
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
140mA
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-6000K
Lumen Output
1725lm
Light Efficiency
115lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.540kg
Pcs/Carton
15
Barcode
5291889081302
HS Code
9405114090
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
