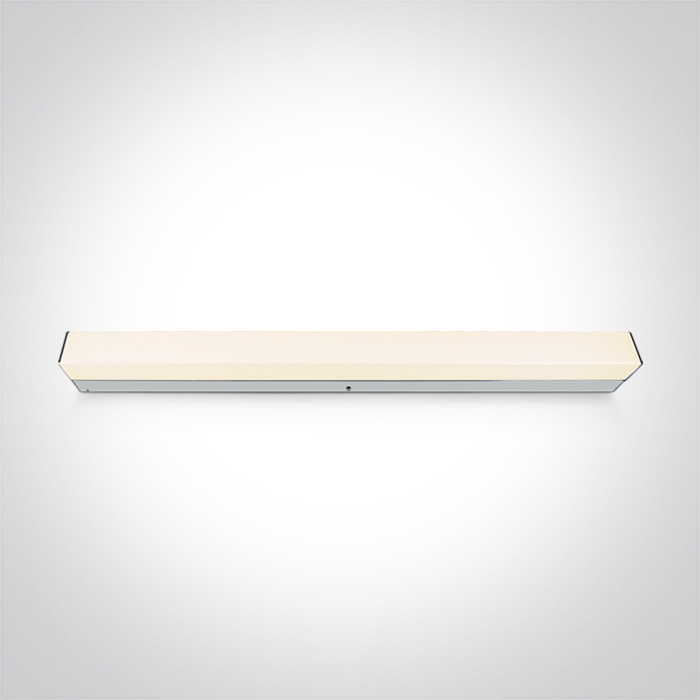

18 Bathroom > The Mirror LED Square Aluminium + PC
38114M/EW
15W LED fitting ideal for installation above the bathroom
mirror, IP44.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

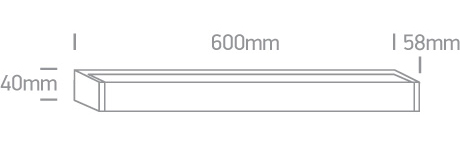

Dimensions
Downloads
Physical Specification
Item Group
18 Bathroom
Family
The Mirror LED Square Aluminium + PC
Order Code
38114M/EW
Colour
Chrome
Material
Aluminium
Diffuser Material
PC
Shape
Rectangular
Length
600mm
Width
40mm
Height
58mm
Surface Wall
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
130mA
Voltage
100V
Power (Watts)
13W
IP Rating
IP44
Light Source
LED built in
LED Type
SMD 2835
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
13-15,6W
Power Factor
0,9
Constant Current
Yes
Voltage Range
100-120V
Output
130mA
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
2700K
Lumen Output
1200lm
Light Efficiency
80lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.608kg
Pcs/Carton
12
Barcode
5291889074151
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
