17 Bathroom > Mirror Lights Adjustable

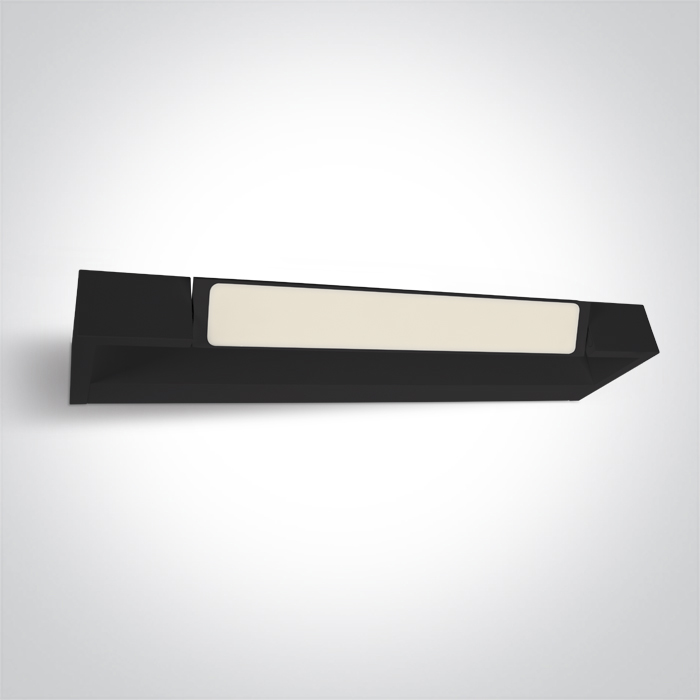

38112C/B/W
12W LED fitting ideal for installation above the bathroom
mirror, IP44.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.

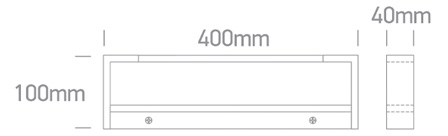

Dimensions
Downloads
Physical Specification
Item Group
17 Bathroom
Family
Mirror Lights Adjustable
Order Code
38112C/B/W
Colour
Black
Material
Aluminium
Diffuser Material
Acrylic
Shape
Rectangular
Length
400mm
Width
100mm
Height
40mm
Surface Wall
Yes
Indoor
Yes
Adjustable
1 Direction
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
12W
IP Rating
IP44
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
600mA
Light Source
LED built in
LED Type
SMD 2835
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
9-15W
Power Factor
0,9
Constant Current
Yes
600mA
15-25V
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
1000lm
Light Efficiency
83,3lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
1.310kg
Pcs/Carton
10
Barcode
5291889078609
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Average Lifetime
36000Hrs L70B50
Wee Directive
Yes
Year in which the CE mark was affixed
23
