New 2025 Edition 2 > Strips & Profiles

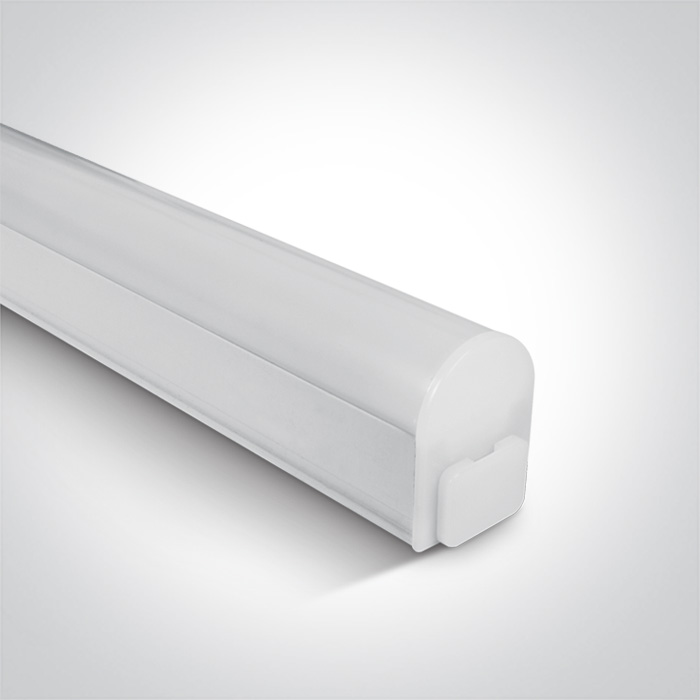

38104B/V
4W CCT Variable, IP20.
Complete with non-dimmable LED driver.
Supplied with 20cm corner cable, 120 cm power cable & 2 fixing clips.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Supplied with 20cm corner cable, 120 cm power cable & 2 fixing clips.
Complies with standard EN60598-1 and any other specific standards.

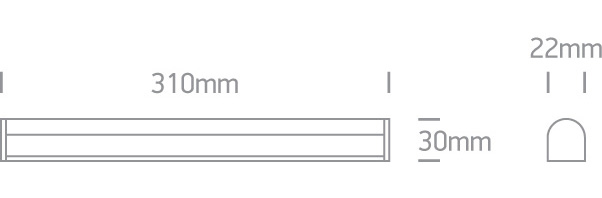

Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Strips & Profiles
Order Code
38104B/V
Material
Plastic
Diffuser Material
PC
Shape
Rectangular
Length
310mm
Width
22mm
Height
30mm
Surface Ceiling
Yes
Surface Wall
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
4W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Power (Watts)
4W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD
Fast Connector
Other
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
4W
Constant Current
Yes
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-6000K
Lumen Output
440lm
Light Efficiency
110lm/W
CRI
80
Illumination Diagram
Packing Info
Box Weight
0.243kg
Pcs/Carton
30
Barcode
5291889081272
HS Code
9405114090
Energy Label
Energy Class
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
