New 2025 Edition 3 > Wall & Ceiling LED
38010B/W/V

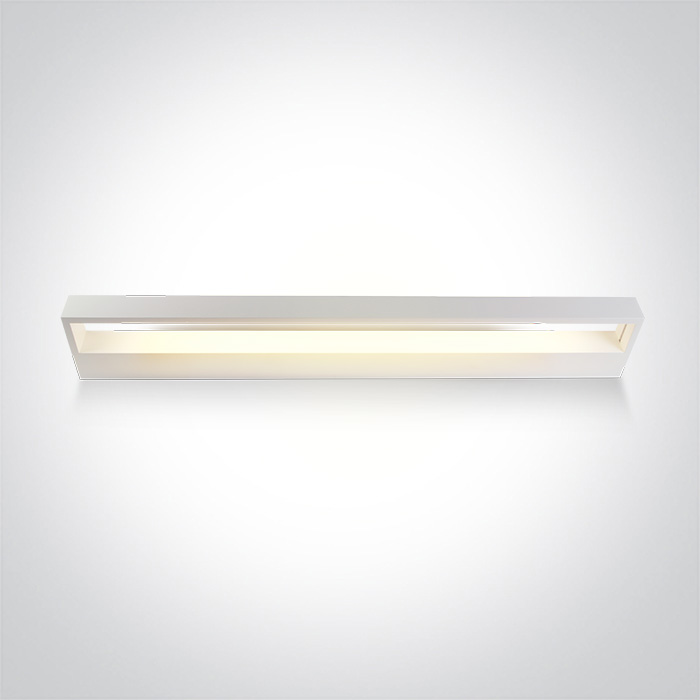

23W LED CCT Variable White Wall Light IP20.
Complies with standard EN60598-1 and any other specific standards.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Wall & Ceiling LED
Order Code
38010B/W/V
Colour
White
Material
Aluminium
Shape
Rectangular
Length
600mm
Width
90mm
Height
40mm
Surface Wall
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
23W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
700mA
Dimmable
No
Illumination Data
Colour Code
2700K-3100K-3500K
Lumen Output
1380lm
Light Efficiency
60lm/W
CRI
90
Illumination Diagram
Packing Info
Box Weight
1.390kg
Pcs/Carton
10
Barcode
5291889080589
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Average Lifetime
72000hrs L70B50
Wee Directive
Yes
Year in which the CE mark was affixed
25
