23 Control & Dimming > Infrared Motion Sensors
22022
Infrared motion sensor for built in installation.
Sensor Head: IP65.
Sensor Controller: IP20.
Complies with standard EN60669 and any other specific standards.
Sensor Head: IP65.
Sensor Controller: IP20.
Complies with standard EN60669 and any other specific standards.

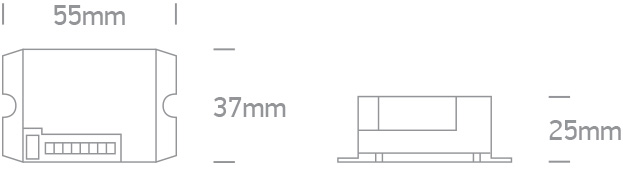

Dimensions
Downloads
Physical Specification
Item Group
23 Control & Dimming
Family
Infrared Motion Sensors
Order Code
22022
Colour
White
Material
Plastic
Shape
Rectangular
Length
55mm
Width
37mm
Height
25mm
Indoor
Yes
Outdoor
Yes
Electrical Characteristics
Sensor
Input Voltage
220-240V
Power (Watts)
400W (LED) / 800W (Incandescent)
Safety Class
Motion
Yes
Detection Angle
120º / 360º
Time Delay
5s, 30s, 1min, 3min, 5min, 8min (adjustable)
Ambient Light
10-2000lux
Installation height
1,8-2,5m (wall mount) 2,2-4m (ceiling mount)
Packing Info
Box Weight
0.068kg
Pcs/Carton
100
Barcode
5291889072850
HS Code
8536309090
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
