New 2025 Edition 3 > Control & Dimming
22008A

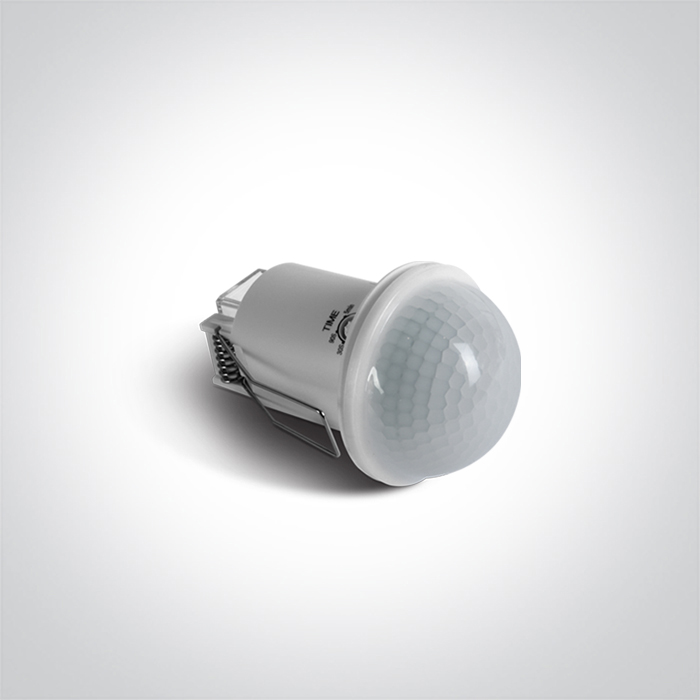

230V 300W (LED) 800W (Incandescent) Recessed Ceiling Infrared Motion & Presence Sensor.
Time delay and daylight sensor are adjustable.
Complies with standard EN60669 and any other specific standards.
Time delay and daylight sensor are adjustable.
Complies with standard EN60669 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Control & Dimming
Order Code
22008A
Material
PC
Shape
Circular
Height
92mm
Diameter
62mm
Cutout Hole Diameter
45mm
Recessed Ceiling
Yes
Depth Required
80mm
Indoor
Yes
Electrical Characteristics
Sensor
Input Voltage
220-240V
Power (Watts)
300W (LED) / 800W (Incandescent)
Safety Class
Motion
Yes
Brightness
Yes
Detection Angle
360°
Detection Distance
20m Motion, 6m Presence
Time Delay
10sec ±3sec to 30min ±2 min (adjustable)
Installation height
2,2-4m
Packing Info
Box Weight
0.114kg
Pcs/Carton
50
Barcode
5291889083894
HS Code
8536309090
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
