24 Control & Dimming > Infrared Ceiling Sensors
22008

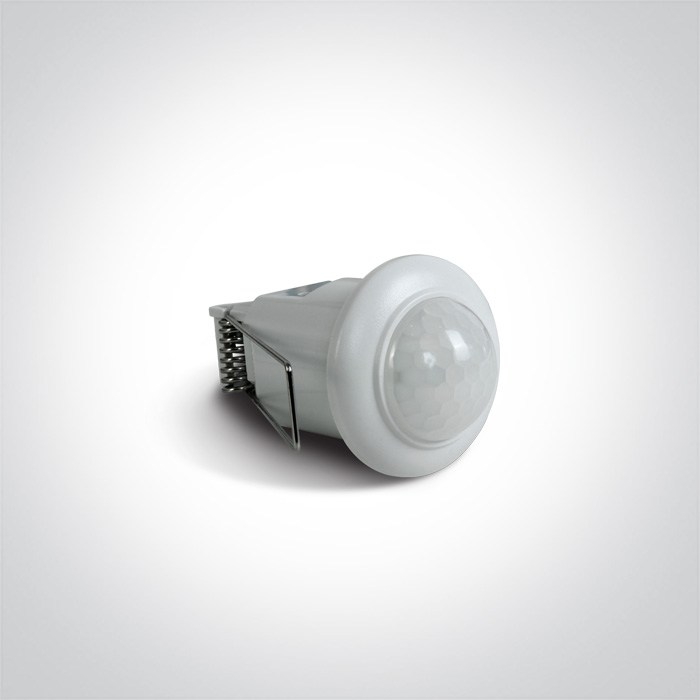

230V 200W (LED) 800W (Incandescent) Recessed Ceiling Infrared Motion Sensor.
Hold time and daylight sensor are adjustable via dip switches
Complies with standard EN60669 and any other specific standards.
Hold time and daylight sensor are adjustable via dip switches
Complies with standard EN60669 and any other specific standards.

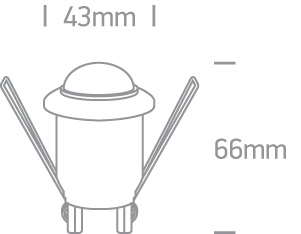

Dimensions
Downloads
Physical Specification
Item Group
24 Control & Dimming
Family
Infrared Ceiling Sensors
Order Code
22008
Material
Plastic
Shape
Circular
Height
66mm
Diameter
43mm
Cutout Hole Diameter
33mm
Recessed Ceiling
Yes
Depth Required
50mm
Indoor
Yes
Electrical Characteristics
Sensor
Input Voltage
220-240V
Power (Watts)
200W (LED) 800W (Incandescent)
Safety Class
Motion
Yes
Brightness
Yes
Detection Angle
360°
Detection Distance
6m
Time Delay
10sec ± 3sec to 15min 2 min (adjustable)
Installation height
2,2-4m
Packing Info
Box Length
7,8cm
Box Width
6,1cm
Box Height
7,1cm
Box Weight
0.070kg
Pcs/Carton
100
Carton Length
41cm
Carton Width
32cm
Carton Height
31cm
Carton Weight
7Kg
Barcode
5291889056737
HS Code
8536309090
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
