24 Control & Dimming > Microwave Motion Sensor
22000

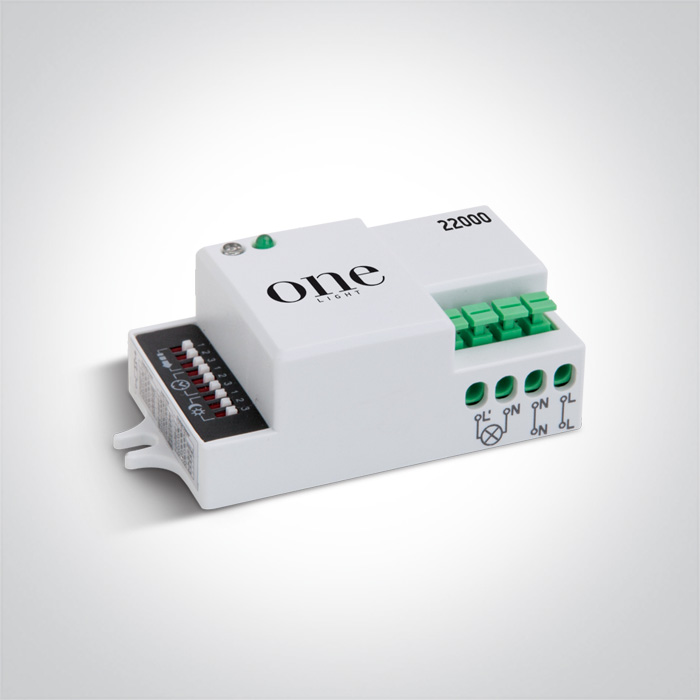

230V 300W Microwave motion sensor ideal for installation
inside fittings and ceilings.
Detection area, hold time and daylight sensor are adjustable via dip switches
Complies with standard EN60669 and any other specific standards.
Detection area, hold time and daylight sensor are adjustable via dip switches
Complies with standard EN60669 and any other specific standards.

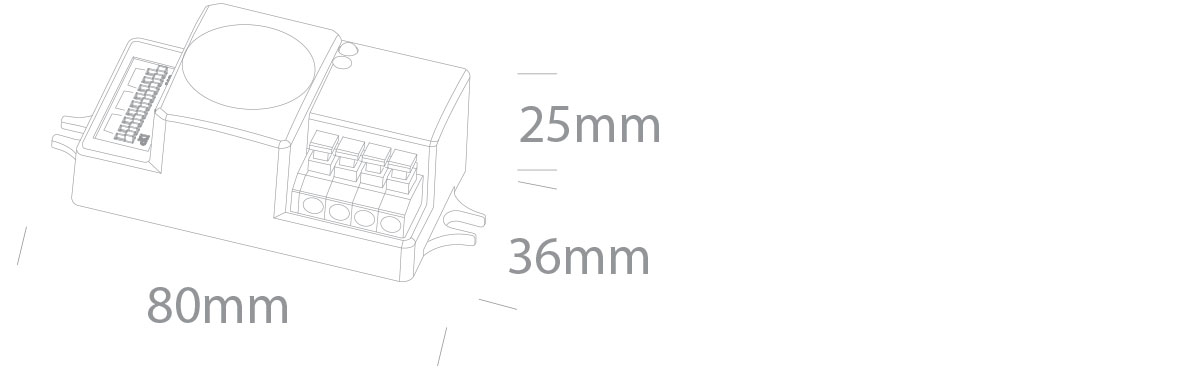

Dimensions
Downloads
Physical Specification
Item Group
24 Control & Dimming
Family
Microwave Motion Sensor
Order Code
22000
Material
Plastic
Shape
Rectangular
Length
80mm
Width
36mm
Height
25mm
Indoor
Yes
Electrical Characteristics
Sensor
Input Voltage
220-240V
Power (Watts)
300W
Safety Class
Motion
Yes
Brightness
Yes
Detection Angle
30° – 150 °
Detection Distance
12m
Time Delay
5s-30min
Ambient Light
2-50lux
Installation height
6m
Packing Info
Box Weight
0.064kg
Pcs/Carton
100
Barcode
5291889051169
HS Code
8536309090
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
17
