12 Wall & Ceiling LED > Dark Light Ceiling Tubes

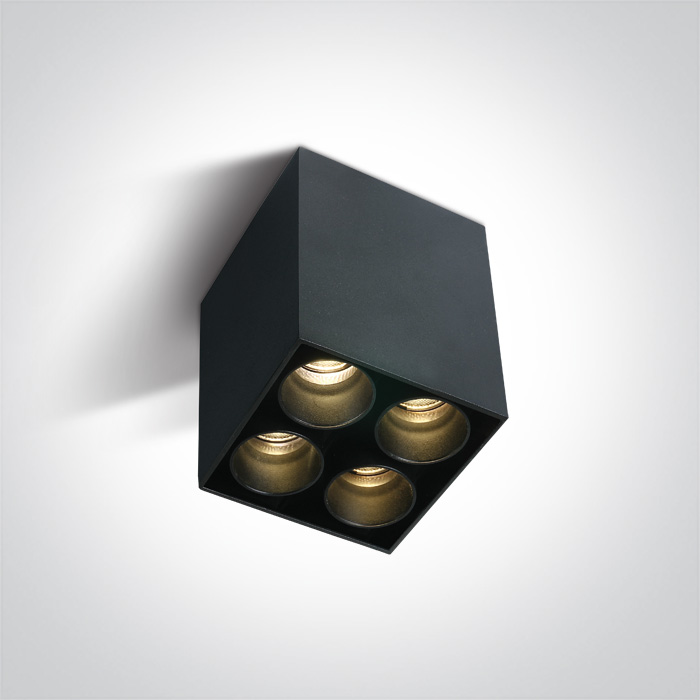

12406C/B/W
10W SMD LED ceiling light IP20.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with 700mA driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
Dark Light Ceiling Tubes
Order Code
12406C/B/W
Colour
Black
Material
Aluminium
Shape
Rectangular
Length
77mm
Width
64mm
Height
64mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
12V
Power (Watts)
8,4W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 3535
LED Brand
Cree
LED Number
4
F Mark
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
6,3-11,2W
Power Factor
0,5
Constant Current
Yes
700mA
9-16V
IP Rating
IP20
Safety Class
Dimmable
No
Ambient Temp
45°C
Operating Temp
75°C
Housing Material
Plastic
Output Terminal
Cable
Illumination Data
Colour Temperature
3000K
Lumen Output
800lm
Light Efficiency
80lm/W
CRI
85
Beam Angle
25°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.355kg
Pcs/Carton
40
Barcode
5291889066965
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
20
