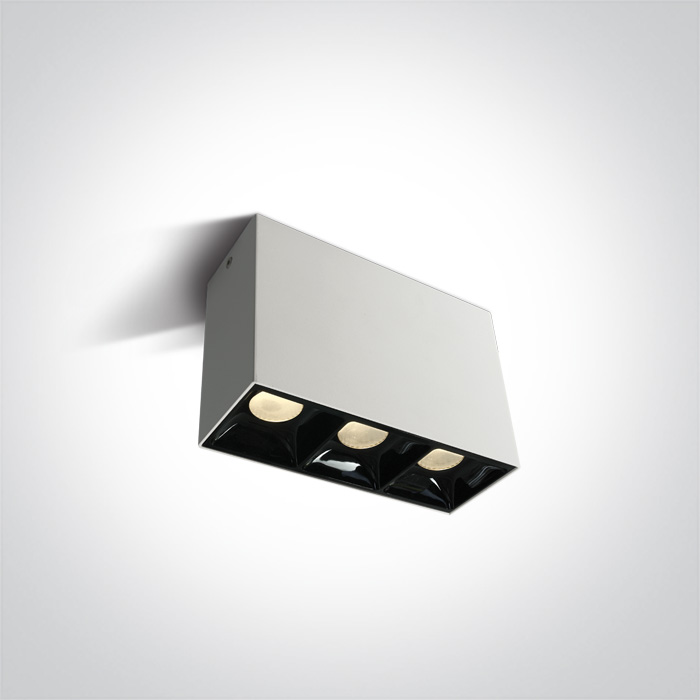

12 Wall & Ceiling LED > Surface Shop Square Boxes Aluminium
12307B/W/W
3x7W COB LED downlight, ideal for residential
and commercial illumination.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
Surface Shop Square Boxes Aluminium
Order Code
12307B/W/W
Colour
White
Material
Aluminium
Shape
Rectangular
Length
146mm
Width
54mm
Height
100mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
3x7W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
54V
Power (Watts)
18,9W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Citizen
LED Number
3
Gear
Gear Type
Led Driver
Input Voltage
100-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
21W
Power Factor
0,95
Constant Current
Yes
350mA
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
3X550lm
Light Efficiency
78,57lm/W
CRI
90
Beam Angle
36°
Illumination Diagram
Packing Info
Box Length
17cm
Box Width
8cm
Box Height
12,5cm
Box Weight
0.983kg
Pcs/Carton
12
Barcode
5291889058342
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
