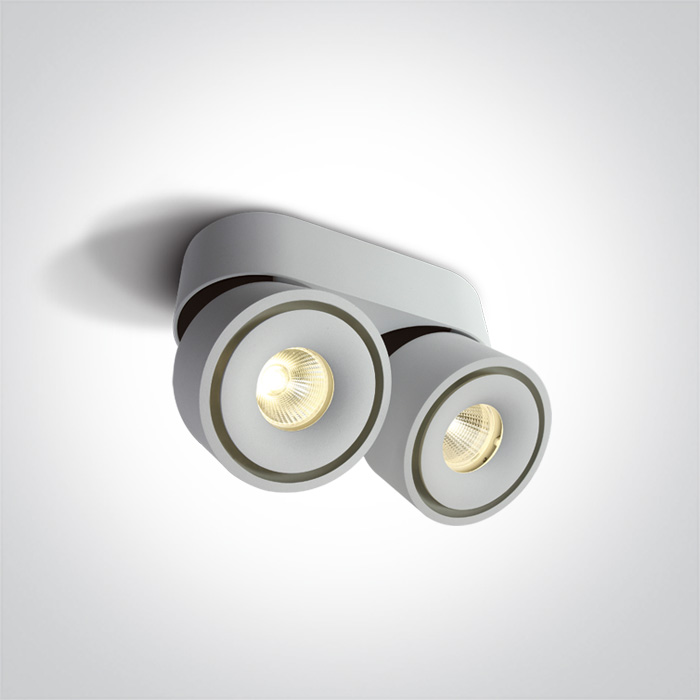

12 Wall & Ceiling LED > The COB Adjustable Display Spots
12208LA/W/W
2x8W COB LED adjustable ceiling downlight, ideal for residential
and commercial illumination.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
The COB Adjustable Display Spots
Order Code
12208LA/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
40mm
Diameter
2x78mm
Surface Ceiling
Yes
Surface Wall
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
2x8W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
9V
Power (Watts)
2x6,3W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
LED Number
2
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3,5-6,3W
Power Factor
0,5
Constant Current
Yes
700mA
5-9V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
2x600lm
Light Efficiency
75lm/W
CRI
80
Beam Angle
25°
Illumination Diagram
Packing Info
Box Length
18,5cm
Box Width
11,5cm
Box Height
20cm
Box Weight
0.822kg
Pcs/Carton
18
Barcode
5291889058922
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
