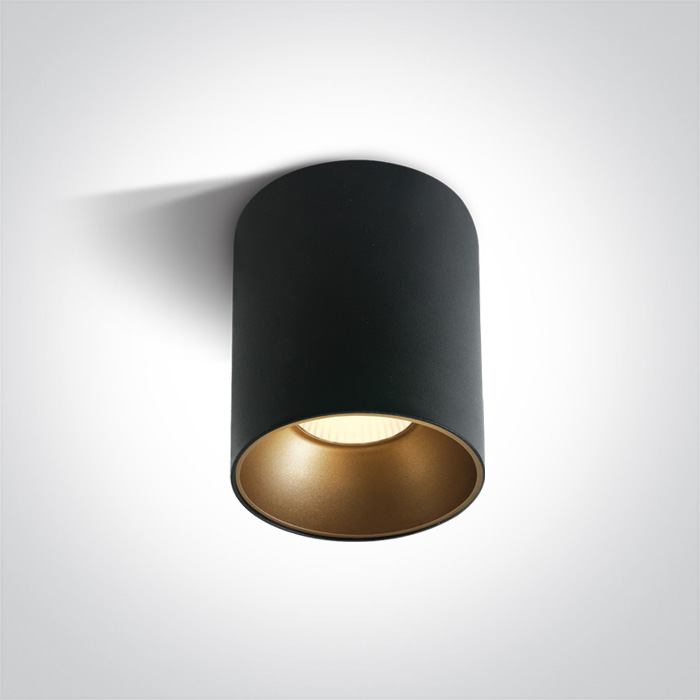

12 Wall & Ceiling LED > The Retro Dark Light Cylinders
12130Z/B/W
30W COB LED cylinder, ideal for residential
and commercial illumination.

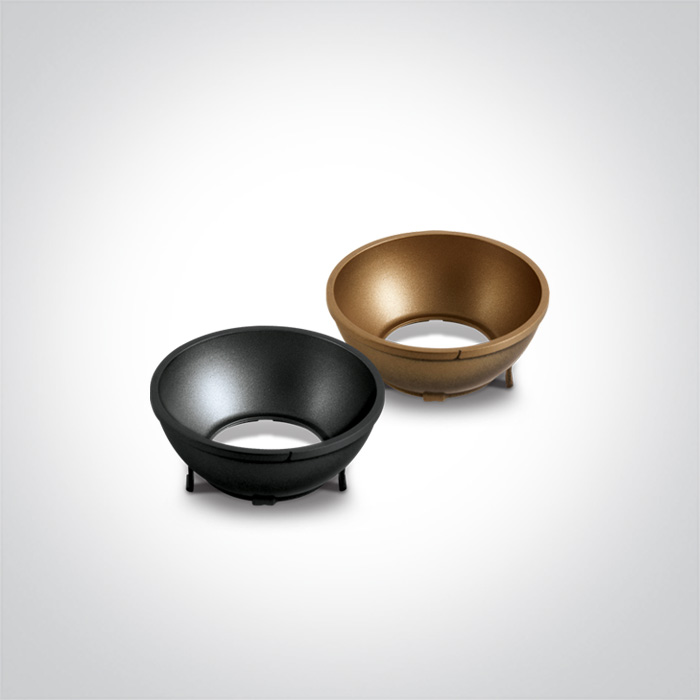

Supplied with Black & Brass reflectors.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with Black & Brass reflectors.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
The Retro Dark Light Cylinders
Order Code
12130Z/B/W
Colour
Black
Material
Die Cast + Plastic
Shape
Circular
Height
125mm
Diameter
115mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
19,6-29,4W
Power Factor
0,9
Constant Current
Yes
700mA
28-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
2400lm
Light Efficiency
80lm/W
CRI
80
Beam Angle
45°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
12,5cm
Box Width
12,5cm
Box Height
19cm
Box Weight
0.975kg
Pcs/Carton
12
Barcode
5291889059097
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
