12 Wall & Ceiling LED > The COB LED Indoor Cylinders Aluminium

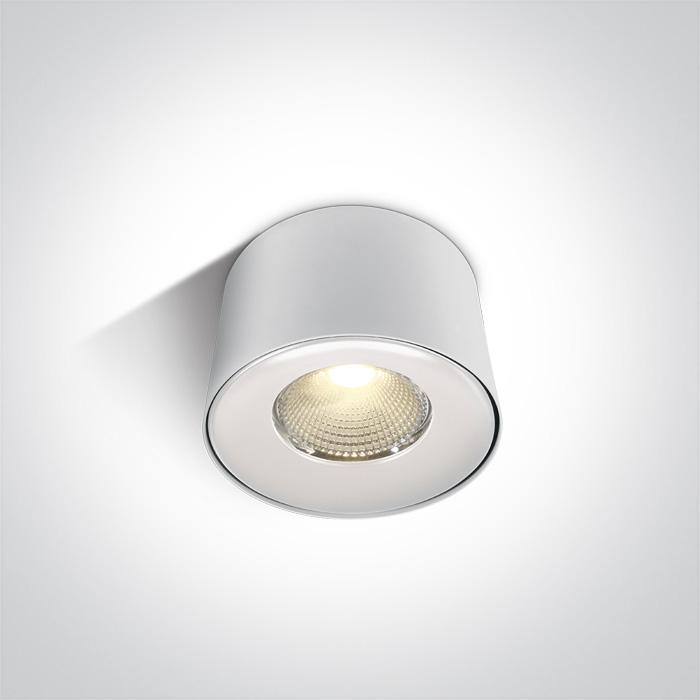

12130LA/W/W
30W COB LED ceiling downlight, ideal for residential
and commercial illumination.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
The COB LED Indoor Cylinders Aluminium
Order Code
12130LA/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
138mm
Diameter
198mm
Surface Wall
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
30W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
40V
Power (Watts)
29,4W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Philips
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
19-30,4W
Power Factor
0,9
Constant Current
Yes
700mA
27-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
2500lm
Light Efficiency
83,33lm/W
CRI
80
Beam Angle
50°
Illumination Diagram
Packing Info
Box Weight
1.000kg
Pcs/Carton
12
Barcode
5291889044925
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
15
