12 Wall & Ceiling LED > LED Fashion Cylinders

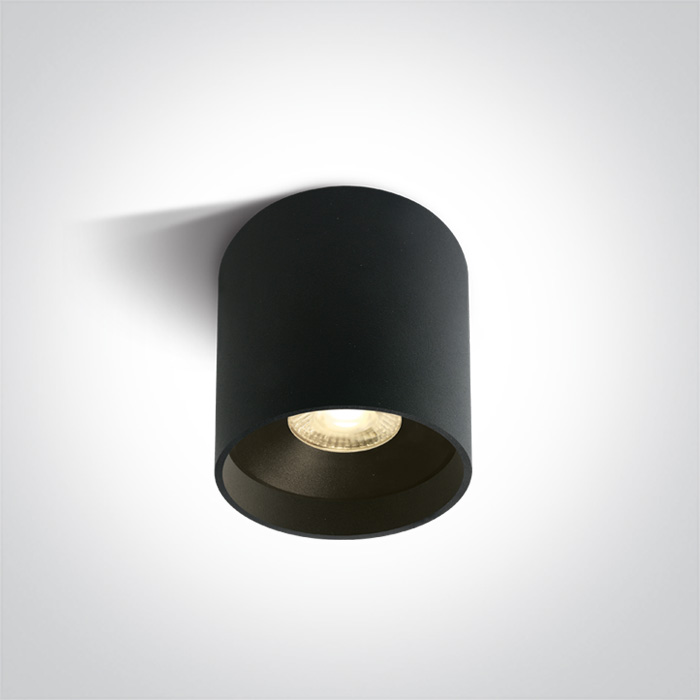

12122C/B/W
22W COB LED Cylinder, ideal for residential
and commercial illumination.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
LED Fashion Cylinders
Order Code
12122C/B/W
Colour
Black
Material
Die Cast
Shape
Circular
Height
100mm
Diameter
100mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
22W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
39,4V
Power (Watts)
19,7W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
15-21W
Power Factor
0,95
Constant Current
Yes
500mA
30-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
1500lm
Light Efficiency
68,18lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Length
14,5cm
Box Width
14cm
Box Height
11cm
Box Weight
0.580kg
Pcs/Carton
20
Barcode
5291889059370
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
