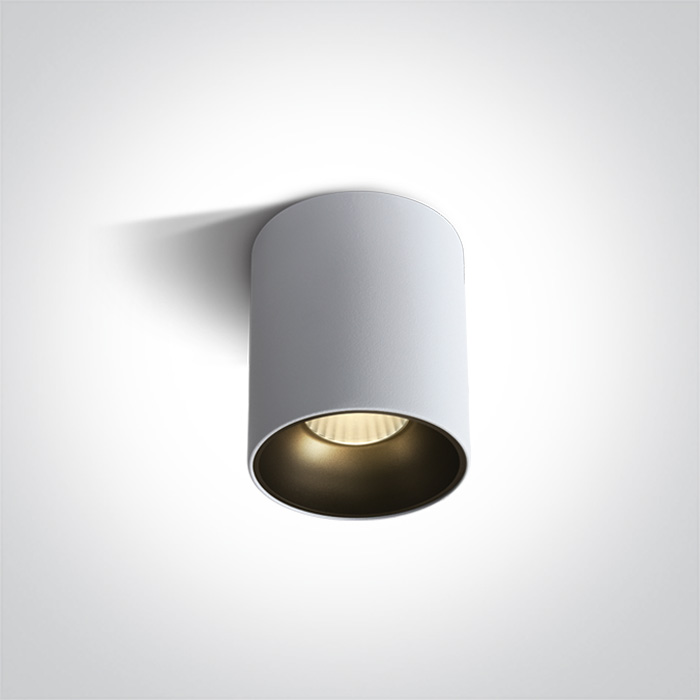

13 Wall & Ceiling LED > The Retro Dark Light Cylinders
12120Z/W/W
20W COB LED cylinder, ideal for residential
and commercial illumination.
Supplied with Black & Brass reflectors.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with Black & Brass reflectors.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
The Retro Dark Light Cylinders
Order Code
12120Z/W/W
Colour
White
Material
Die Cast + Plastic
Shape
Circular
Height
115mm
Diameter
94mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Voltage
37,2V
Power (Watts)
18,6W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
12,5-21,5W
Power Factor
0,9
Constant Current
Yes
500mA
25-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
1600lm
Light Efficiency
80lm/W
CRI
80
Beam Angle
45°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
10,5cm
Box Width
10,5cm
Box Height
17,5cm
Box Weight
0.629kg
Pcs/Carton
24
Barcode
5291889059073
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
