New 2025 Edition 3 > Wall & Ceiling LED
12120M/B/V

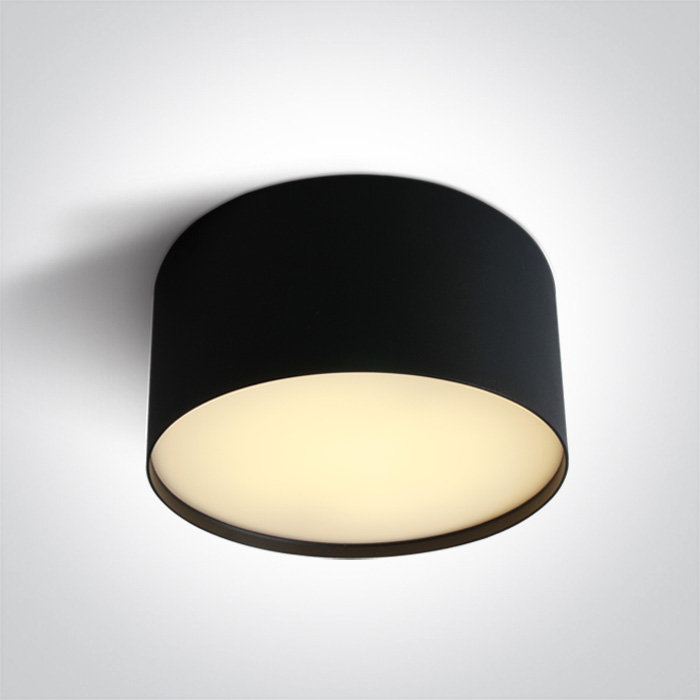

20W CCT Variable LED surface mounted downlight.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Wall & Ceiling LED
Order Code
12120M/B/V
Colour
Black
Material
Aluminium
Shape
Circular
Height
65mm
Diameter
145mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
20W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
500mA
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
500mA
Dimmable
No
Illumination Data
Colour Temperature
3000K-4000K-5000K
Lumen Output
1600lm
Light Efficiency
80lm/W
CRI
90
Beam Angle
120°
Illumination Diagram
Packing Info
Box Weight
0.610kg
Pcs/Carton
20
Barcode
5291889085478
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
