New 2025 Edition 2 > Wall & Ceiling LED

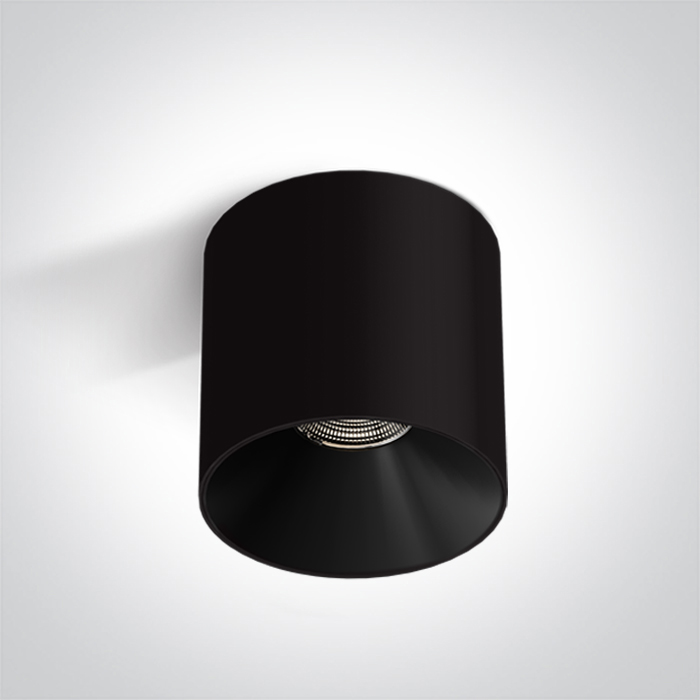

12118R/B/W
18W COB LED cylinder, with a modern design, ideal for residential
and commercial illumination.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Wall & Ceiling LED
Order Code
12118R/B/W
Colour
Black
Material
Aluminium
Shape
Circular
Height
100mm
Diameter
100mm
Surface Ceiling
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
18W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
450mA
Power (Watts)
18W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Constant Current
Yes
450mA
15-42V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
1800lm
Light Efficiency
100lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Weight
0.505kg
Pcs/Carton
20
Barcode
5291889081722
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
