12 Wall & Ceiling LED > The Hidden Light Cylinders Range

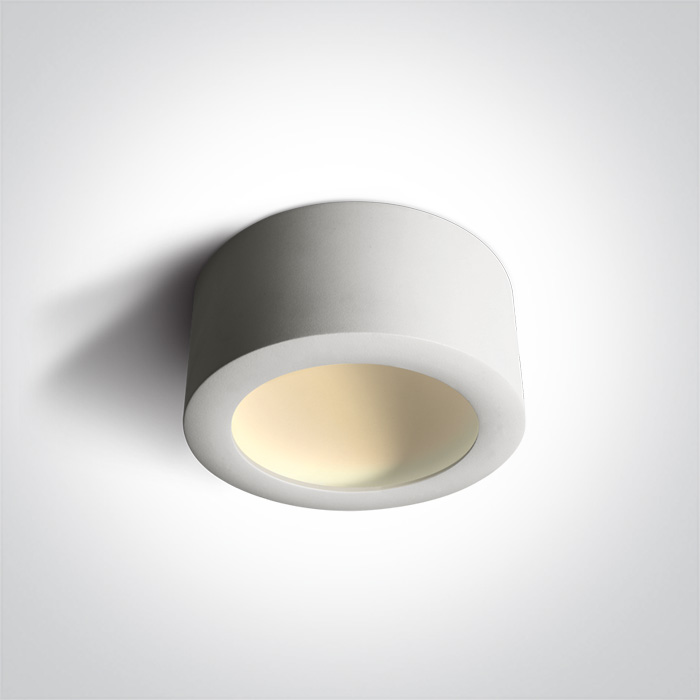

12116FD/W/W
16W LED Hidden Light Cylinders Range.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
The Hidden Light Cylinders Range
Order Code
12116FD/W/W
Colour
White
Material
Die Cast
Shape
Circular
Height
80mm
Diameter
175mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
16W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
50V
Power (Watts)
15W
IP Rating
IP20
Light Source
LED built in
LED Type
SMD 2835
LED Brand
Bridgelux
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
13,5-18W
Power Factor
0,9
Constant Current
Yes
300mA
45-60V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
1100lm
Light Efficiency
68,75lm/W
CRI
80
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
18cm
Box Width
18cm
Box Height
8,5cm
Box Weight
0.795kg
Pcs/Carton
20
Barcode
5291889053460
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
