12 Wall & Ceiling LED > Dark Light Pro Cubes
12115HA/W/W

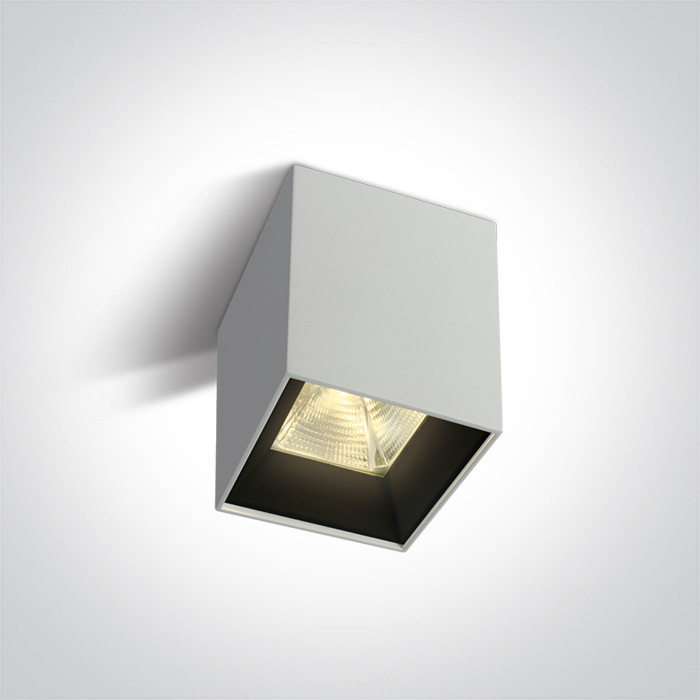

15W COB LED ceiling downlight, ideal for residential
and commercial illumination.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
Dark Light Pro Cubes
Order Code
12115HA/W/W
Colour
White
Material
Aluminium
Shape
Rectangular
Length
100mm
Width
100mm
Height
120mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
15W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
350mA
Voltage
40V
Power (Watts)
14W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Philips
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7,3-14W
Power Factor
0,9
Constant Current
Yes
350mA
21-40V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
1200lm
Light Efficiency
80lm/W
CRI
80
Beam Angle
60°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.632kg
Pcs/Carton
48
Barcode
5291889060932
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
19
