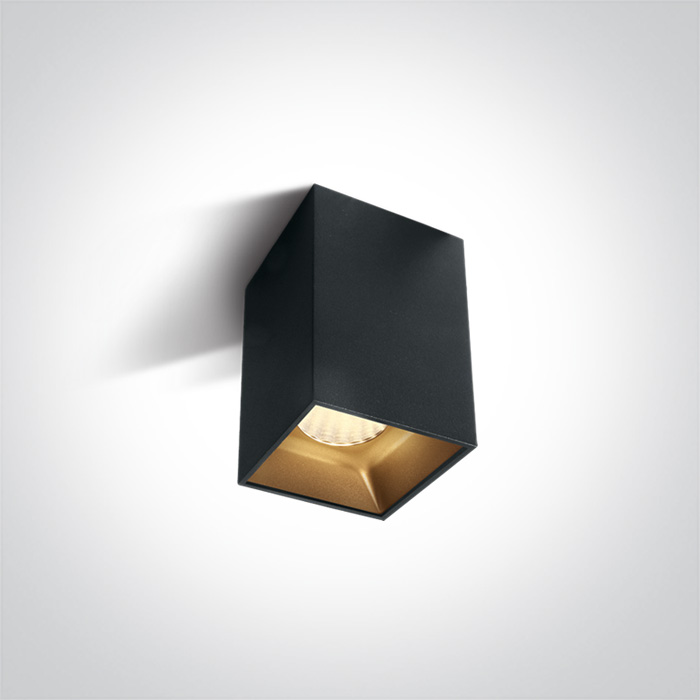

12 Wall & Ceiling LED > The Retro Dark Light Cubes
12112ZA/B/W
12W COB LED rectangular ceiling downlight, ideal for residential
and commercial illumination.
Supplied with Black & Brass reflectors.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Supplied with Black & Brass reflectors.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
The Retro Dark Light Cubes
Order Code
12112ZA/B/W
Colour
Black
Material
Die Cast + Plastic
Shape
Rectangular
Length
73mm
Width
73mm
Height
95mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
12W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
300mA
Voltage
35,9V
Power (Watts)
10,8W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Cree
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
7,5-12,6W
Power Factor
0,5
Constant Current
Yes
300mA
25-42V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
960lm
Light Efficiency
80lm/W
CRI
80
Beam Angle
45°
Illumination Diagram
Dark Light
Yes
Packing Info
Box Length
8cm
Box Width
8cm
Box Height
15,5cm
Box Weight
0.406kg
Pcs/Carton
30
Barcode
5291889059134
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
