New 2025 Edition 2 > Wall & Ceiling LED
12110R/W/W

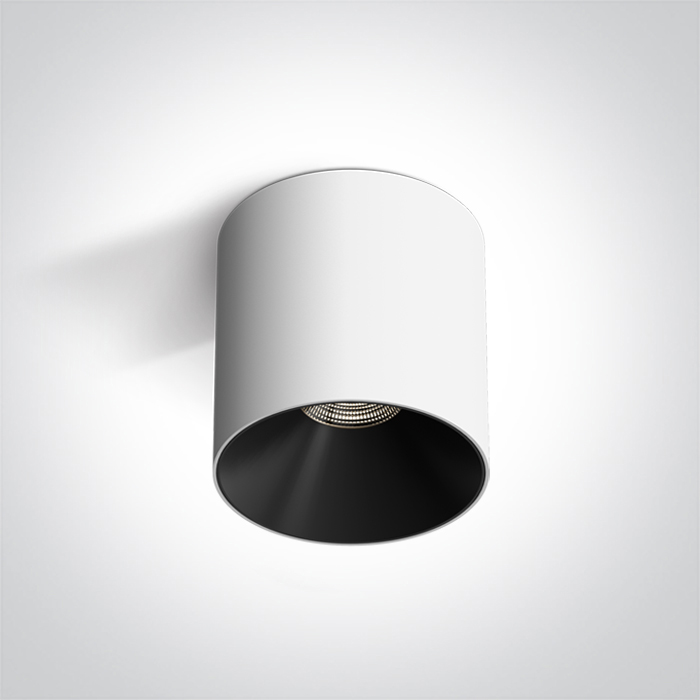

10W COB LED cylinder, with a modern design, ideal for residential
and commercial illumination.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 2
Family
Wall & Ceiling LED
Order Code
12110R/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
85mm
Diameter
80mm
Surface Ceiling
Yes
Indoor
Yes
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
10W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
250mA
Power (Watts)
10W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Constant Current
Yes
250mA
27-40V
IP Rating
IP20
Safety Class
Dimmable
No
Illumination Data
Colour Temperature
3000K
Lumen Output
1000lm
Light Efficiency
100lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Weight
0.300kg
Pcs/Carton
30
Barcode
5291889081692
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
24
