13 Wall & Ceiling LED > The COB Adjustable Display Spots
12108LA/W/W

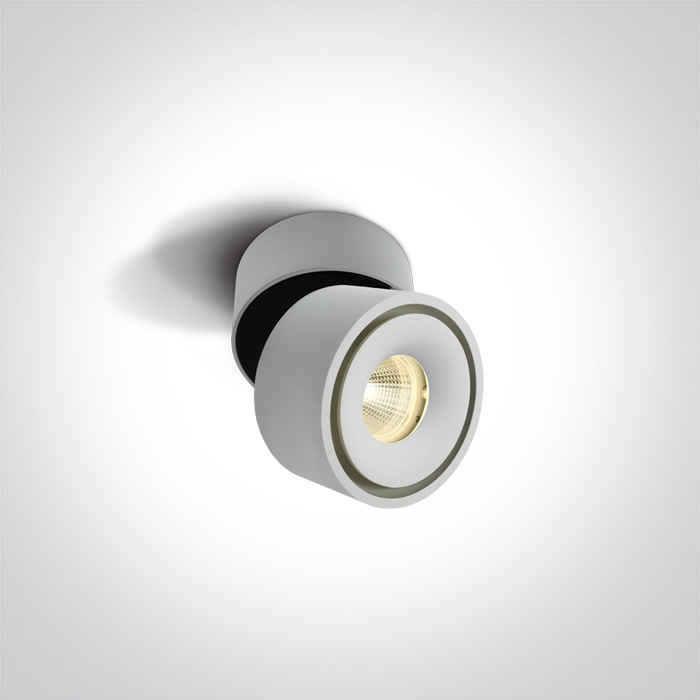

8W COB LED adjustable ceiling downlight, ideal for residential
and commercial illumination.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
13 Wall & Ceiling LED
Family
The COB Adjustable Display Spots
Order Code
12108LA/W/W
Colour
White
Material
Aluminium
Shape
Circular
Height
40mm
Diameter
78mm
Surface Ceiling
Yes
Surface Wall
Yes
Indoor
Yes
Adjustable
2 Directions
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Input Current
700mA
Voltage
9V
Power (Watts)
6,3W
IP Rating
IP20
Light Source
LED built in
LED Type
COB
LED Brand
Bridgelux
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Power (Watts)
3,5-6,3W
Power Factor
0,5
Constant Current
Yes
700mA
5-9V
IP Rating
IP20
Safety Class
Dimmable
No
Housing Material
Plastic
Illumination Data
Colour Temperature
3000K
Lumen Output
600lm
Light Efficiency
75lm/W
CRI
90
Beam Angle
25°
Illumination Diagram
Packing Info
Box Length
10,5cm
Box Width
11cm
Box Height
15,5cm
Box Weight
0.487kg
Pcs/Carton
24
Barcode
5291889058915
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
2 years
Wee Directive
Yes
Year in which the CE mark was affixed
18
