New 2025 Edition 3 > Wall & Ceiling LED

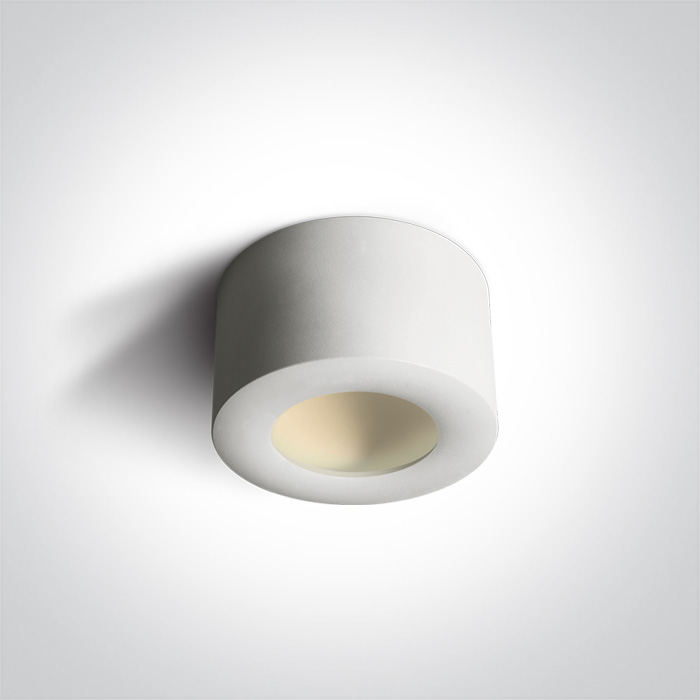

12108FD/W/V
8W CCT Variable LED Hidden Light Cylinders Range.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
New 2025 Edition 3
Family
Wall & Ceiling LED
Order Code
12108FD/W/V
Colour
White
Material
Aluminium
Shape
Circular
Height
64mm
Diameter
107mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
LED Type
SMD
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
200mA
Dimmable
No
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
560lm
Light Efficiency
70lm/W
CRI
90
Illumination Diagram
Dark Light
Yes
Packing Info
Box Weight
0.375kg
Pcs/Carton
36
Barcode
5291889083313
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
3 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
