12 Wall & Ceiling LED > LED Fashion Cylinders
12108C/B/V

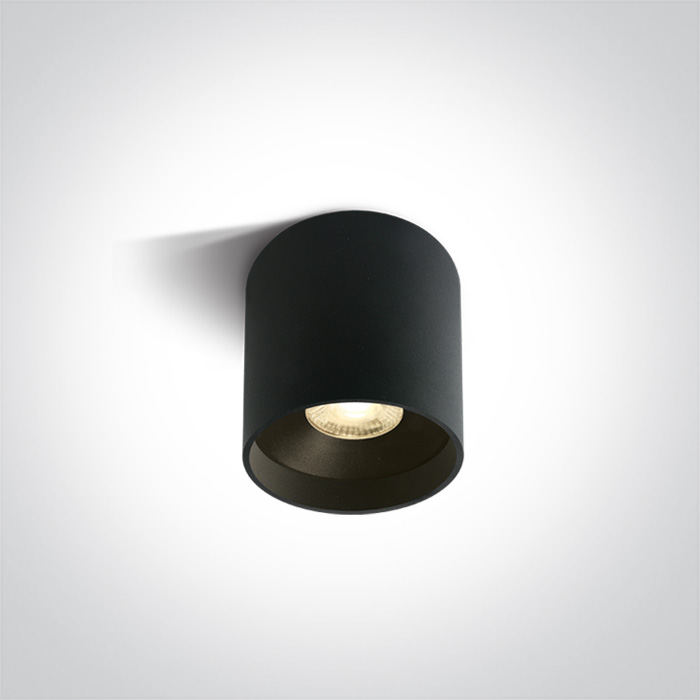

8W CCT Variable Black COB LED Cylinder.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Complete with non-dimmable LED driver.
Complies with standard EN60598-1 and any other specific standards.
Dimensions
Downloads
Physical Specification
Item Group
12 Wall & Ceiling LED
Family
LED Fashion Cylinders
Order Code
12108C/B/V
Colour
Black
Material
Aluminium
Shape
Circular
Height
70mm
Diameter
70mm
Surface Ceiling
Yes
Indoor
Yes
Adjustable
No
Electrical Characteristics
Gear
Built In
Fitting + Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Safety Class
Power (Watts)
8W
IP Rating
IP20
Light Source
LED built in
Dimmable
No
F Mark
Fitting
Input Type
Constant Current
Light Source
LED built in
Gear
Gear Type
Led Driver
Input Voltage
220-240V
50 Hz
Yes
60 Hz
Yes
Output
350mA
Illumination Data
Colour Temperature
3000K-3500K-4000K
Lumen Output
650lm
Light Efficiency
81,25lm/W
CRI
90
Beam Angle
38°
Illumination Diagram
Packing Info
Box Weight
0.280kg
Pcs/Carton
50
Barcode
5291889084297
HS Code
9405413990
Energy Label
Certification & Warranty
Warranty
5 years
Wee Directive
Yes
Year in which the CE mark was affixed
25
